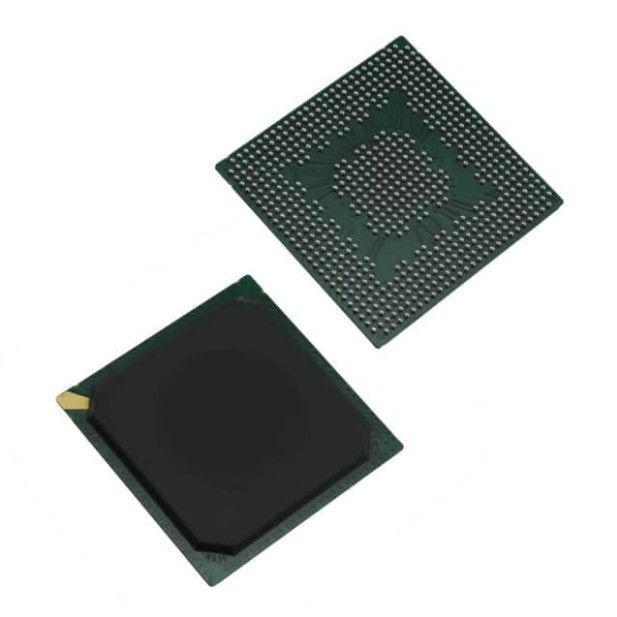

MPC8314ECVRAGDA Embedded Processors PBGA-620 Microprocessors

Product Details:
Place of Origin: USA
Brand Name: NXP
Model Number: MPC8314ECVRAGDA
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: PBGA-620
Series: MPC8314E
Factory Pack Quantity: 36
Product Type: Microprocessors
High Light:

SMD Embedded Processors

,

PBGA-620 Embedded Processors

,

MPC8314ECVRAGDA E

Product Description

Embedded Processors MPC8314ECVRAGDA PBGA-620 Microprocessors



Product Description:

The MPC8314E incorporates the e300c3 (MPC603e-based) core, which includes 16 Kbytes of L1 instruction and data caches, on-chip memory management units (MMUs), and floating-point support. In addition to the e300 core, the SoC platform includes features such as dual enhanced three-speed 10, 100, 1000 Mbps Ethernet controllers (eTSECs) with SGMII support, a 32- or 16-bit DDR1/DDR2 SDRAM memory controller, a security engine to accelerate control and data plane security protocols, and a high degree of software compatibility with previous-generation PowerQUICC processor-based designs for backward compatibility and easier software migration. The MPC8314E also offers peripheral interfaces such as a 32-bit PCI interface with up to 66 MHz operation, 16-bit enhanced local bus interface with up to 66 MHz operation, TDM interface, and USB 2.0 with an on-chip USB 2.0 PHY. 8314E offers additional high-speed interconnect support with dual single-lane PCI Express interfaces. When not used for PCI Express, the SerDes interface may be configured to support SGMII. The MPC8314E security engine (SEC 3.3) allows CPU-intensive cryptographic operations to be offloaded from the main CPU core. This figure shows a block diagram of the MPC8314E.



Power Management Controller​:

The MPC8314E supports a range of power management states that significantly lower power consumption
under the control of the power management controller. The PMC includes the following features:
• Provides power management when the device is used in both PCI host and agent modes
• PCI Power Management 1.2 D0, D1, D2, D3hot, and D3cold states
• PME generation in PCI agent mode, PME detection in PCI host mode
• Wake-up from Ethernet (magic packet), USB, GPIO, and PCI (PME input as host) while in the D1,
D2 and D3hot states
• A new low-power standby power management state called D3warm
— The PMC, one Ethernet port, and the GTM block remain powered via a split power supply
controlled through an external power switch
— Wake-up events include Ethernet (magic packet), GTM, GPIO, or IRQ inputs and cause the
device to transition back to normal operation
— PCI agent mode is not be supported in D3warm state
• PCI Express-based PME events are not supported



Parameter Table:

Product Attribute Attribute Value
Manufacturer: NXP
Product Category: Microprocessors - MPU
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: PBGA-620
Operating Supply Voltage: 1 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 105 C
Brand: NXP Semiconductors
I/O Voltage: 1.8 V, 2.5 V, 3.3 V
Product Type: Microprocessors - MPU
Factory Pack Quantity: 36
Subcategory: Microprocessors - MPU
