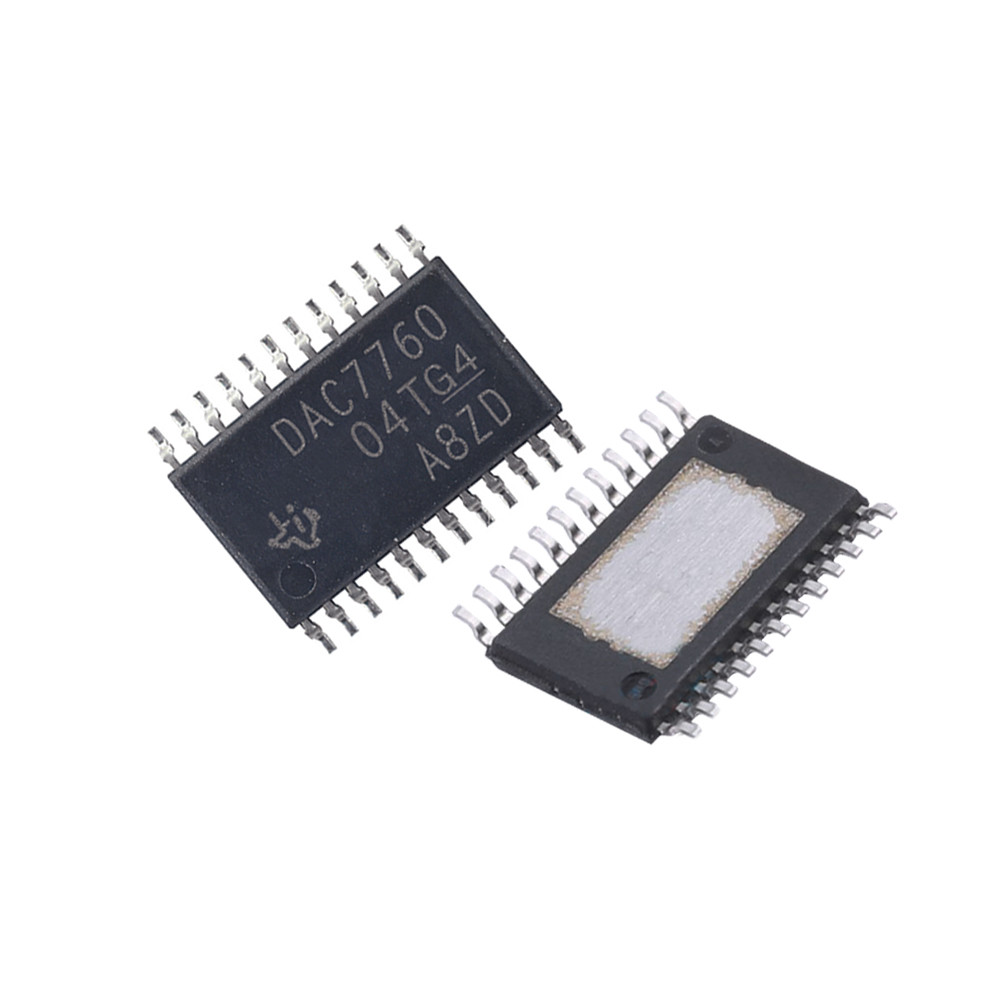

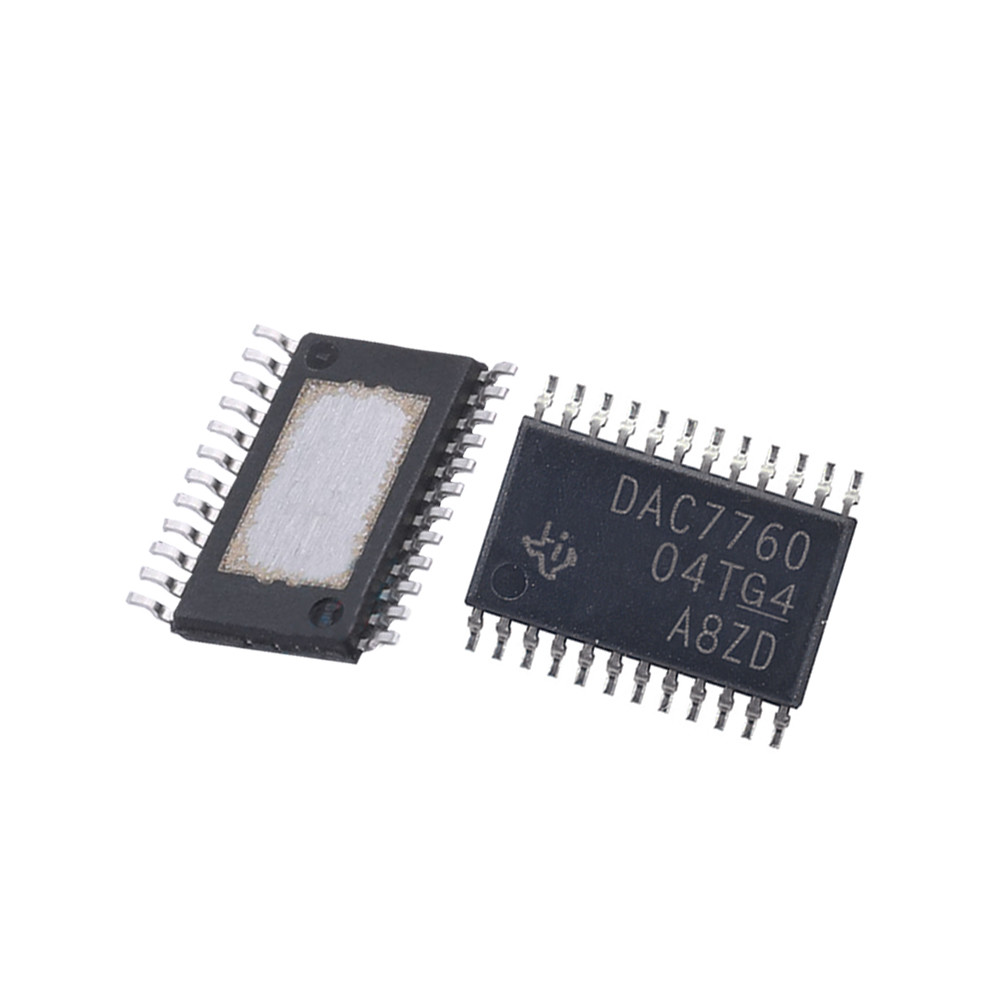

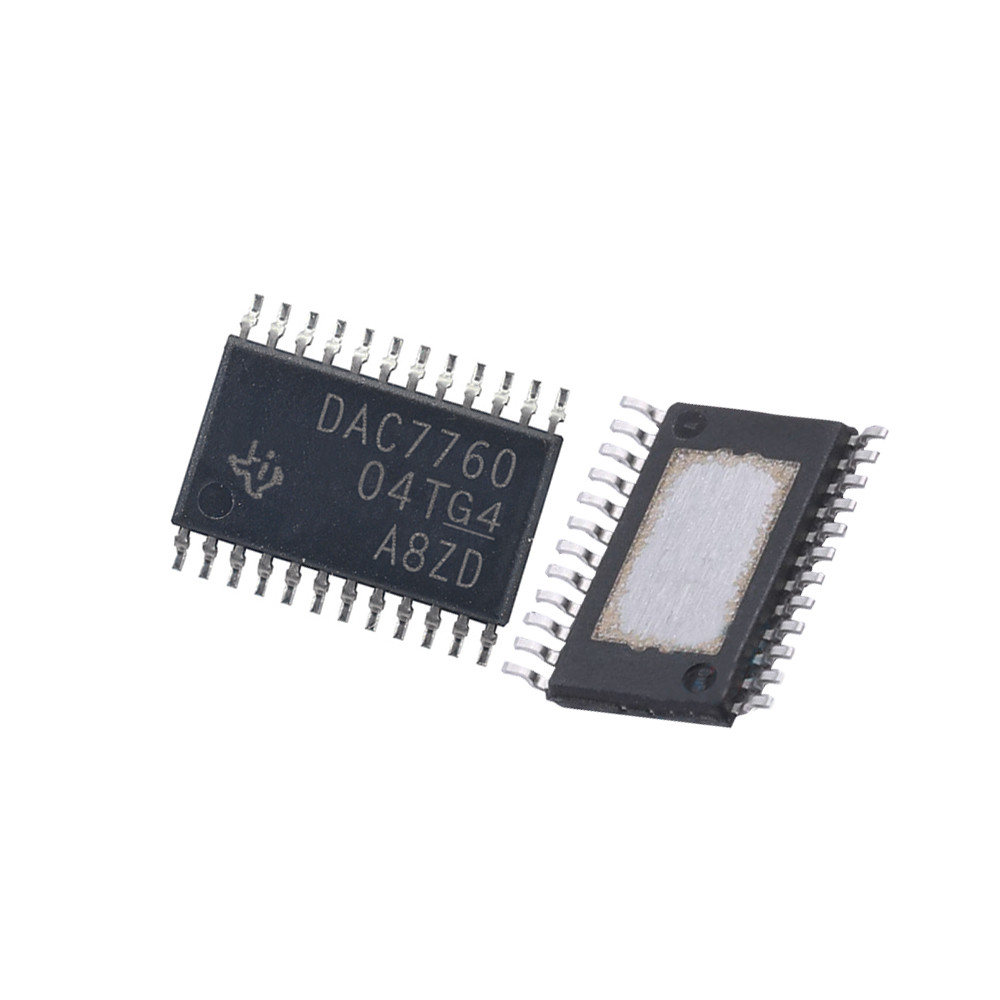

IC Integrated Circuits DAC7760IPWPR HTSSOP-24 DACs - Digital to Analog Converters

IC Integrated Circuits DAC7760IPWPR HTSSOP-24 DACs - Digital to Analog Converters

Product Description:

The DACx760 are precision, fully integrated, 12- bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register. These devices include a power-on-reset function for powering up in a known state (both IOUT and VOUT are disabled and in a Hi-Z state). The CLR and CLRSEL pins set the voltage outputs to zero-scale or midscale, and the current output to the low end of the range if the output is enabled. Zero and gain registers can be programmed to digitally calibrate the device in the end system. The output slew rate is also programmable by register. These devices can superimpose an external HART® signal on the current output, and operate with either a single 10-V to 36-V supply, or dual supplies of up to ±18 V.

Application:

• Analog output module • CPU (PLC controller) • HVAC valve and actuator control • Flow transmitter • Other sensor transmitter • Actuator

Parameter Table:

FAQ:

• Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

• Can i get a free sample?

You can ask our staff for apply free samples.

• What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

• What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

• How will you Guaranteed quality?

Quality Warranty Period:12 Months.

• Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

• Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
