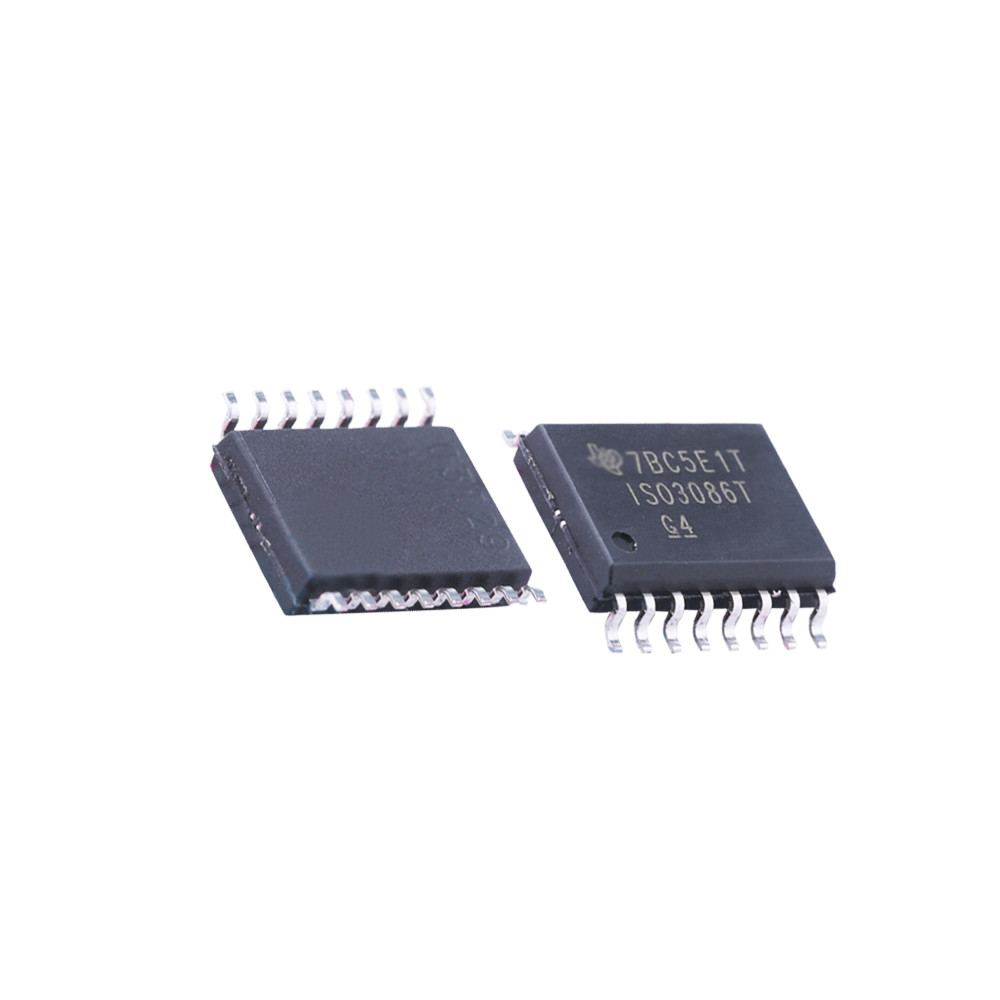

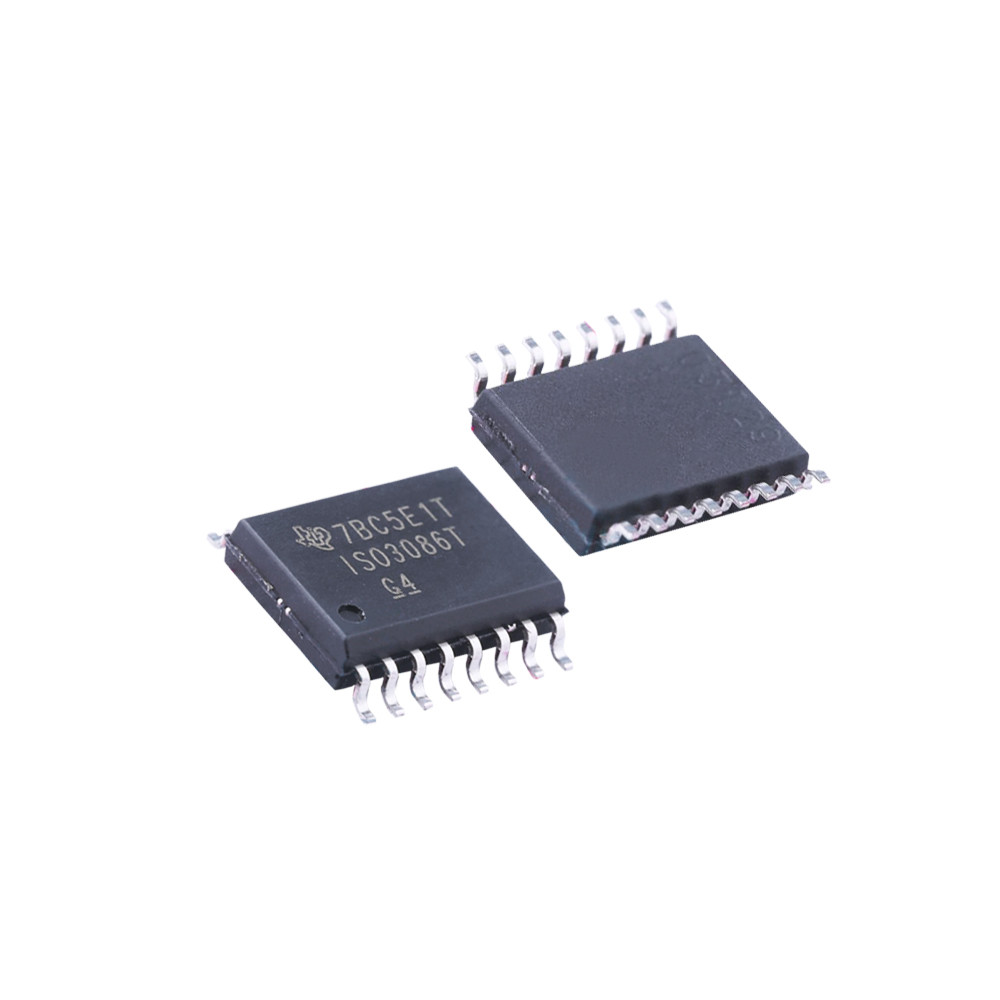

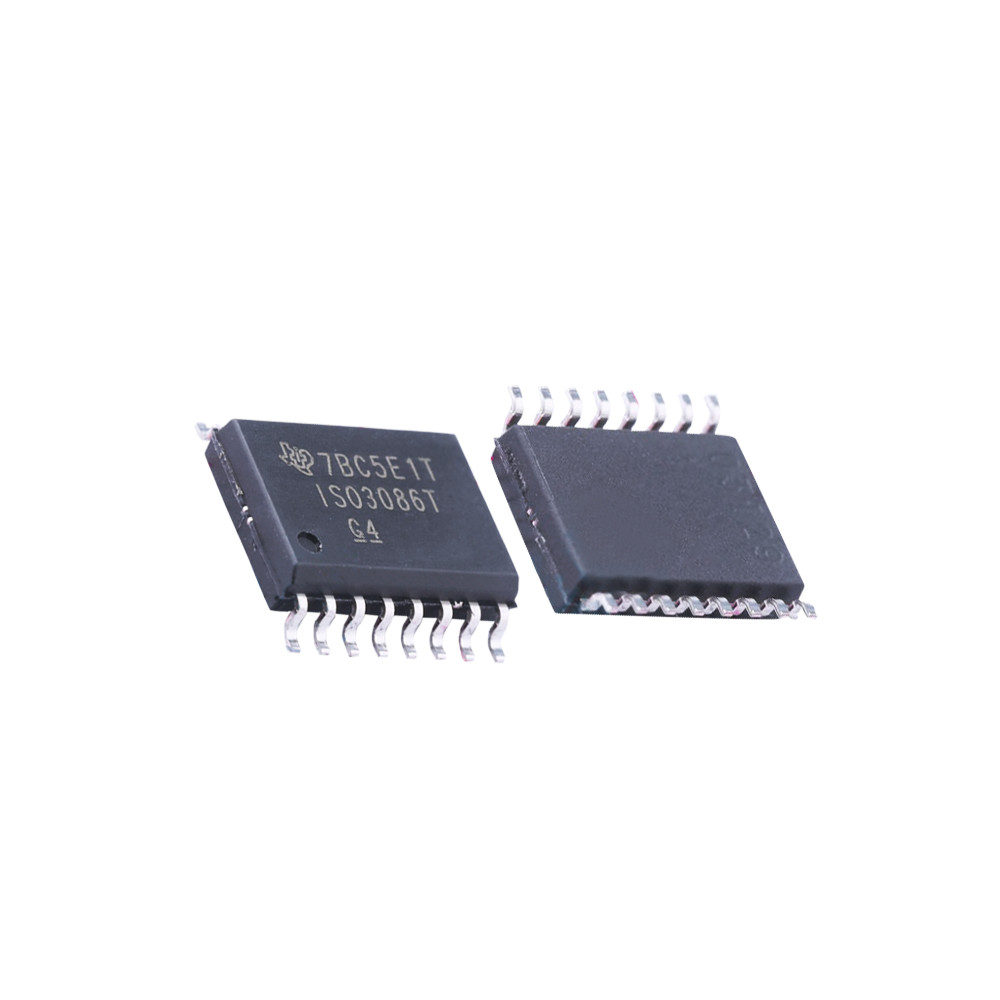

IC Integrated Circuits ISO3086TDWR SOIC-16 Digital Isolators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: ISO3086TDWR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: SOIC-16
Series: ISO3086T
Factory Pack Quantity: 2000
Product Type: Digital Isolators
Product Description

IC Integrated Circuits ISO3086TDWR SOIC-16 Digital Isolators



Product Description:

The ISO3086T is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer. The device is a full-duplex differential line transceiver for RS-485 and RS-422 applications that can easily be configured for half-duplex operation by connecting pin 11 to pin 14, and pin 12 to pin 13.These devices are ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 4242 VPK of isolation for 1 minute per VDE between the bus-line transceiver and the logic-level interface.Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. These isolated devices can significantly increase protection and reduce the risk of damage to expensive control circuits.The ISO3086T is specified for use from –40°C to 85°C.



Application:

Isolated RS-485/RS-422 Interfaces • Factory Automation • Motor/Motion Control • HVAC and Building Automation Networks • Networked Security Stations



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Digital Isolators
RoHS: YES
Series: ISO3086T
Mounting Style: SMD/SMT
Package / Case: SOIC-16
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 3 V
Brand: Texas Instruments
Operating Supply Voltage: 3 V to 5.5 V
Product Type: Digital Isolators
Factory Pack Quantity: 2000
Subcategory: Interface ICs
