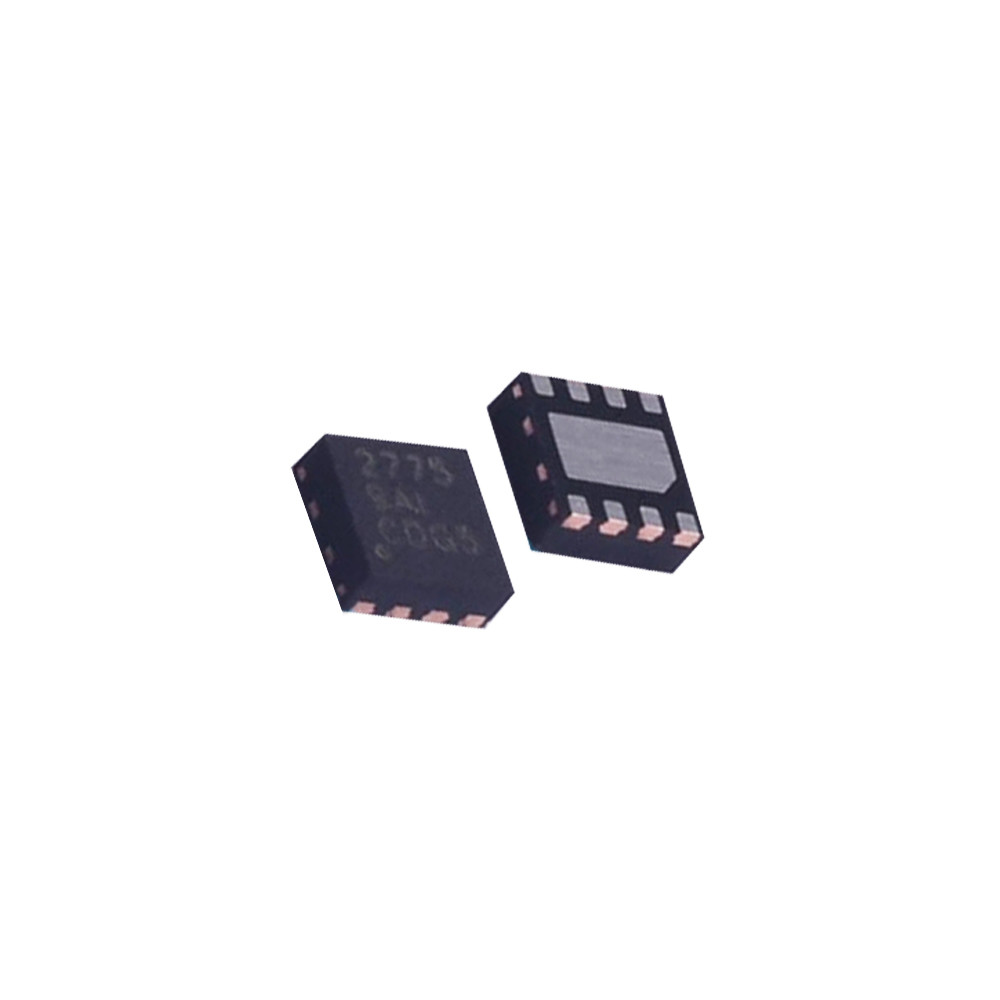

IC Integrated Circuits LM2775DSGR WSON-8 Switching Voltage Regulators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: LM2775DSGR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: WSON-8
Series: LM2775
Factory Pack Quantity: 3000
Product Type: Switching Voltage Regulators
Product Description

IC Integrated Circuits LM2775DSGR WSON-8 Switching Voltage Regulators



Product Description:

The LM2775 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The LM2775 can supply up to 200 mA of output current over a 3.1-V to 5.5-V input range, as well as up to 125 mA of output current when the input voltage is as low as 2.7 V. At low output currents, the LM2775 can reduce its quiescent current by operating in a pulse frequency modulation (PFM) mode. PFM mode can be enabled or disabled by driving the PFM pin to high or low. Additionally, when the LM2775 is in shutdown, the user can chose to have the output voltage pulled to GND or left in a high impedance state by setting the OUTDIS pin high or low. The LM2775 has been placed in TI's 8-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions.



Application:

• USB OTG HDMI Power • Portable Electronics



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: WSON-8
Quiescent Current: 75 uA
Series: LM2775
Brand: Texas Instruments
Input Voltage: 2.7 V to 5.5 V
Product Type: Switching Voltage Regulators
Shutdown: Shutdown
Factory Pack Quantity: 3000
Subcategory: PMIC - Power Management ICs
