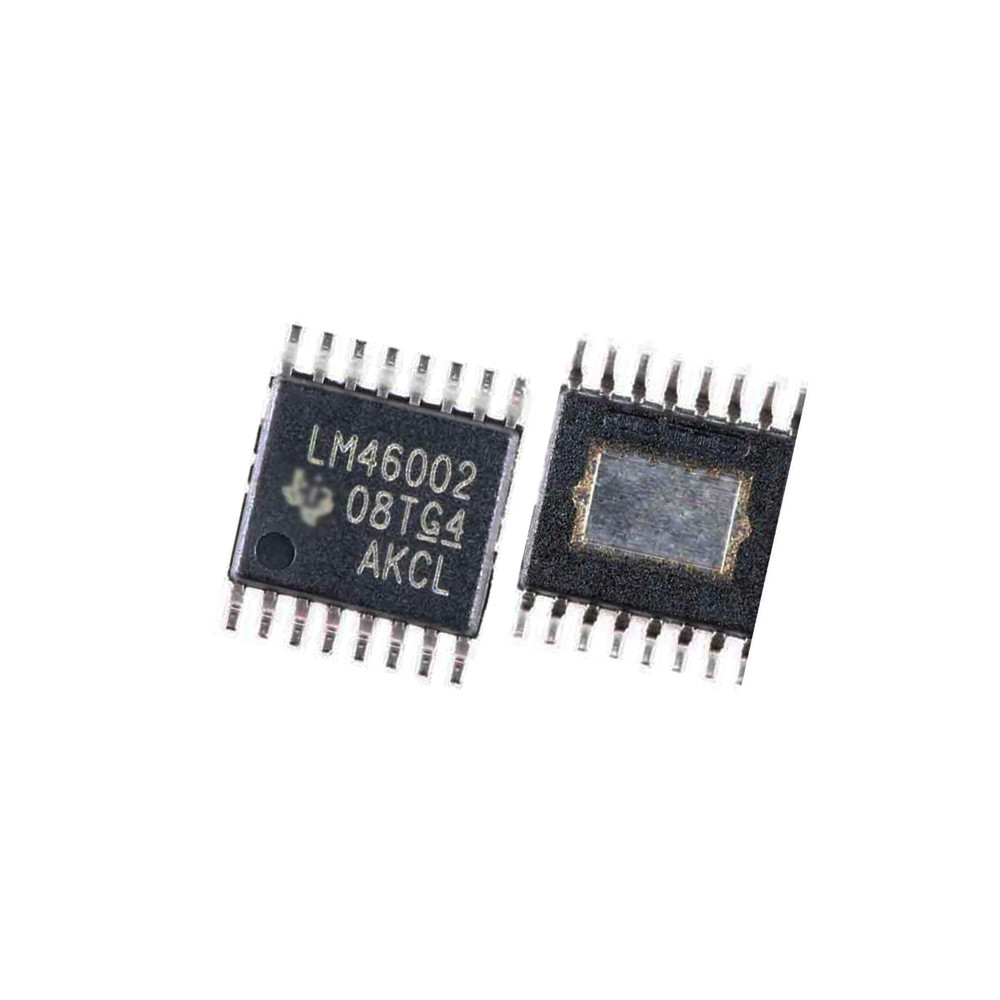

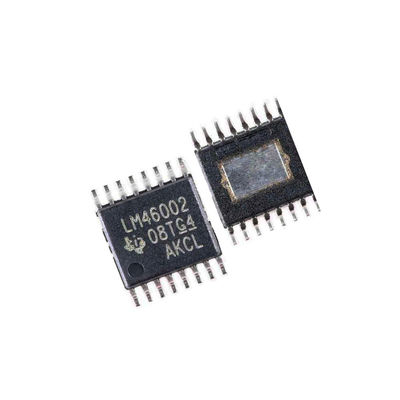

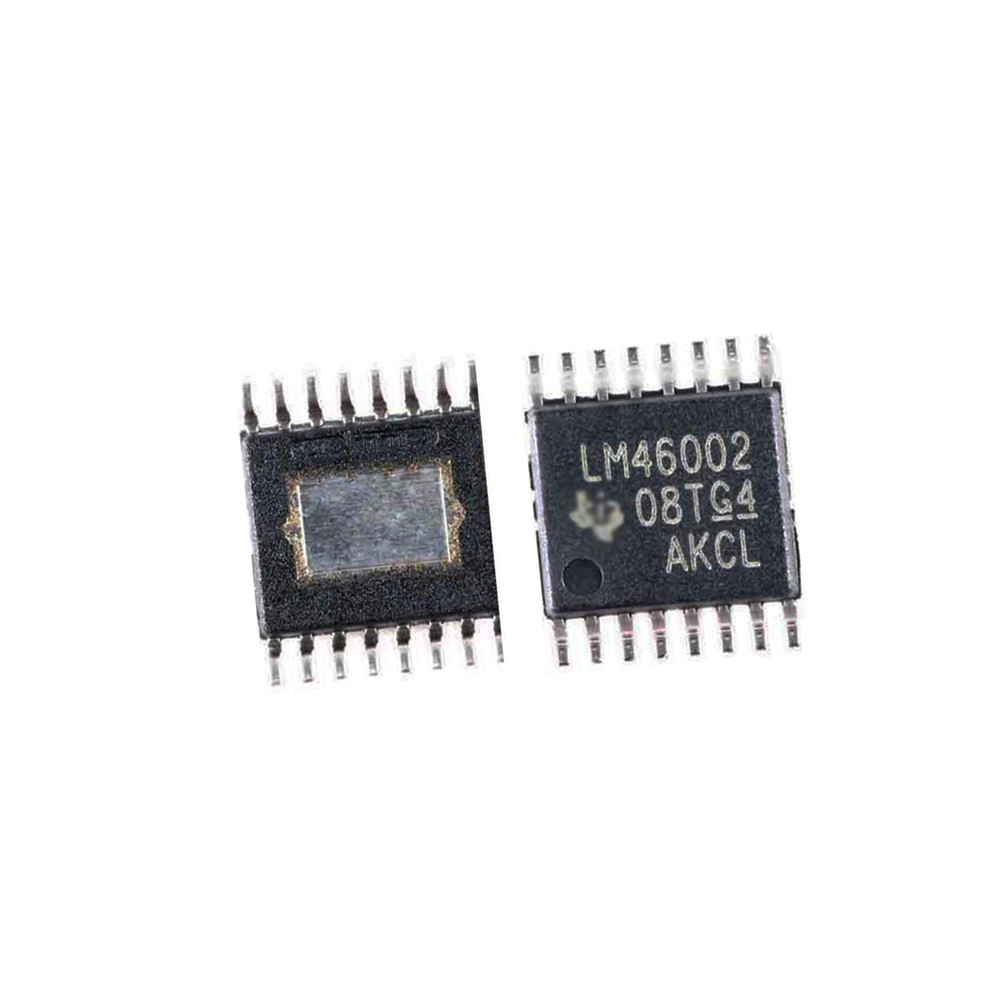

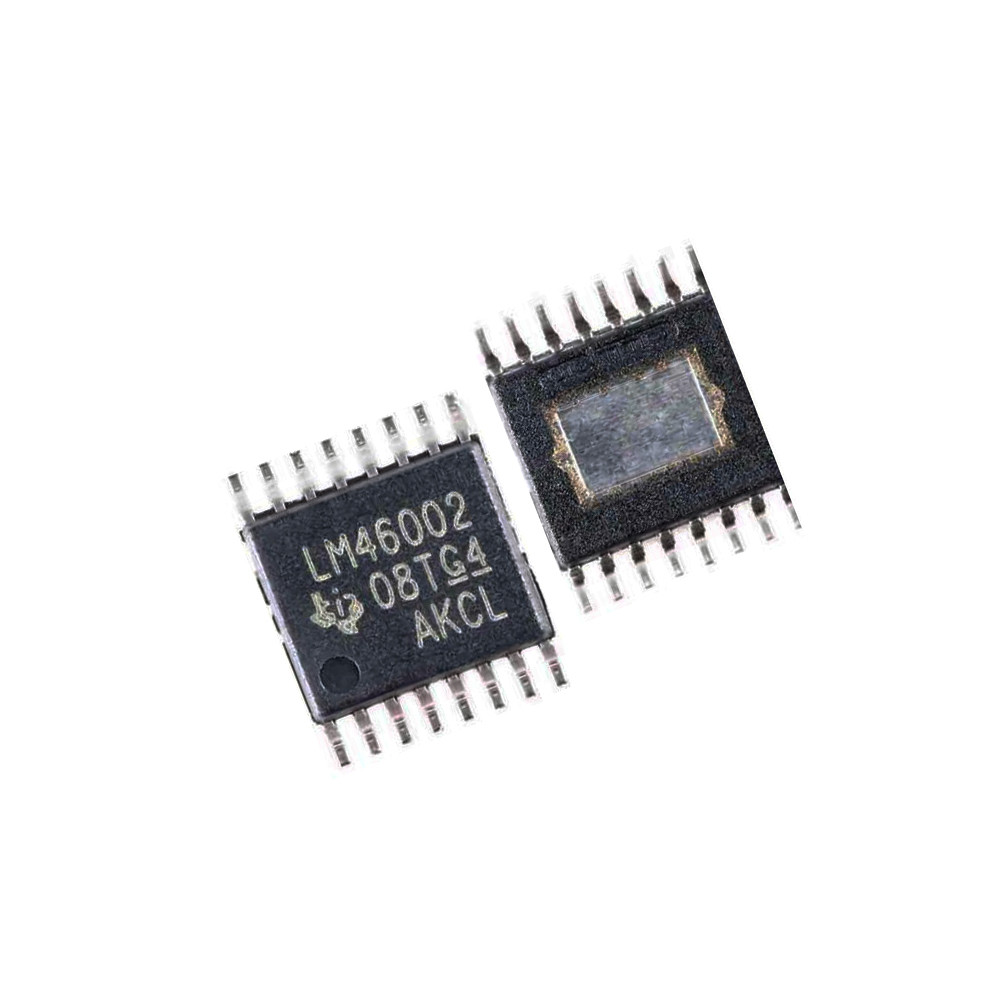

IC Integrated Circuits LM46002PWPR HTSSOP-16 Switching Voltage Regulators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: LM46002PWPR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
RoHS: PB Free
Mounting Style: SMD/SMT
Package: HTSSOP-16
Series: LM46002
Factory Pack Quantity: 2000
Product Type: Switching Voltage Regulators
Product Description

IC Integrated Circuits LM46002PWPR HTSSOP-16 Switching Voltage Regulators


Product Description:

The LM46002 regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 2 A of load current from an input voltage ranging from 3.5 V to 60 V. The LM46002 provides exceptional efficiency, output accuracy and drop-out voltage in a very small solution size. An extended family is available in various load current options and 36-V maximum input voltage in pin-to-pin compatible packages, including LM46001, LM46000, LM43603, LM43602, LM43601 and LM43600. Peak-currentmode control is employed to achieve simple controlloop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-touse platform for a wide range of applications. Discontinuous conduction and automatic frequency reduction at light loads improve light load efficiency. The family requires few external components. Pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM46002 device is available in the 16-lead HTSSOP / PWP package (6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch.



• Industrial power supplies • Telecommunications systems • Sub-AM band automotive • Commercial vehicle power supplies • General-purpose wide VIN regulation • High-efficiency point-of-load regulation


Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
Mounting Style: SMD/SMT
Package / Case: HTSSOP-16
Series: LM46002
Brand: Texas Instruments
Input Voltage: 3.5 V to 60 V
Product Type: Switching Voltage Regulators
Shutdown: Shutdown
Factory Pack Quantity: 2000
Subcategory: PMIC - Power Management ICs
Supply Voltage - Min: 3.5 V




  • Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

  • Can i get a free sample?

You can ask our staff for apply free samples.

  • What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

  • What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

  • How will you Guaranteed quality?

Quality Warranty Period:12 Months.

  • Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

  • Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
