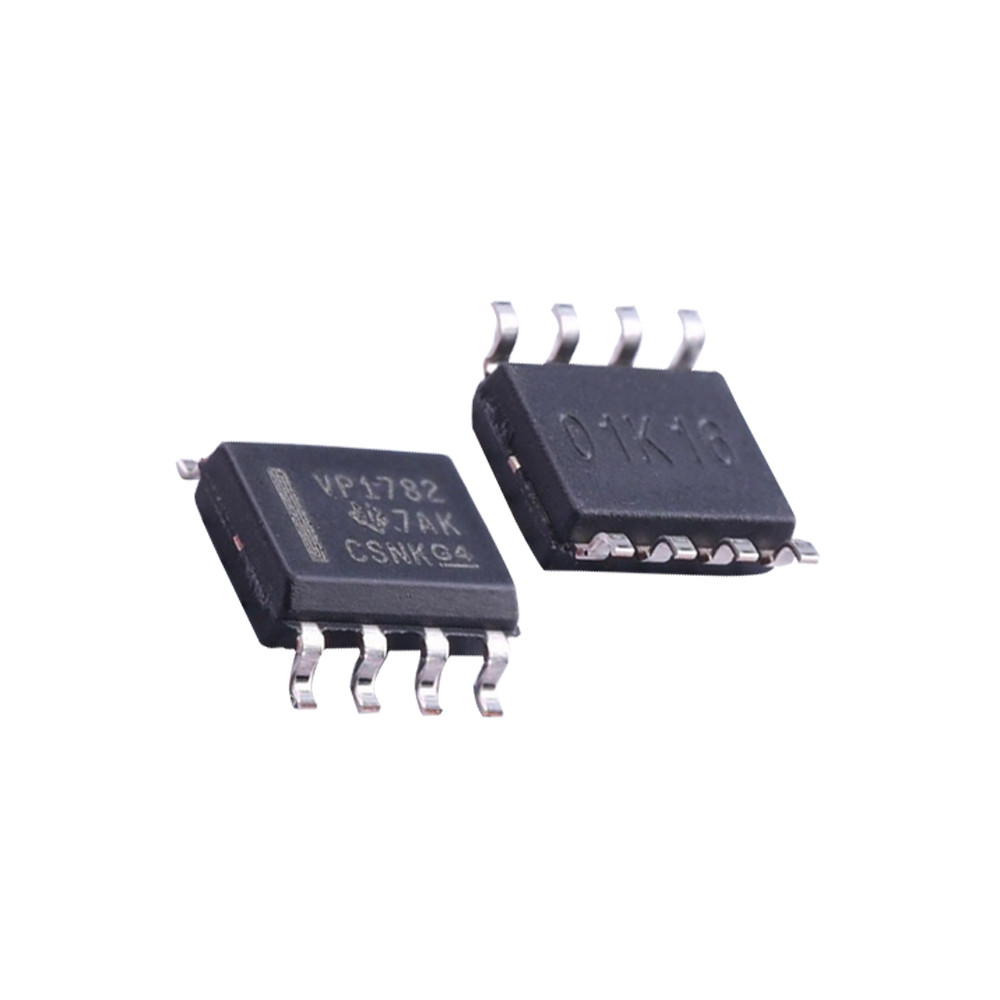

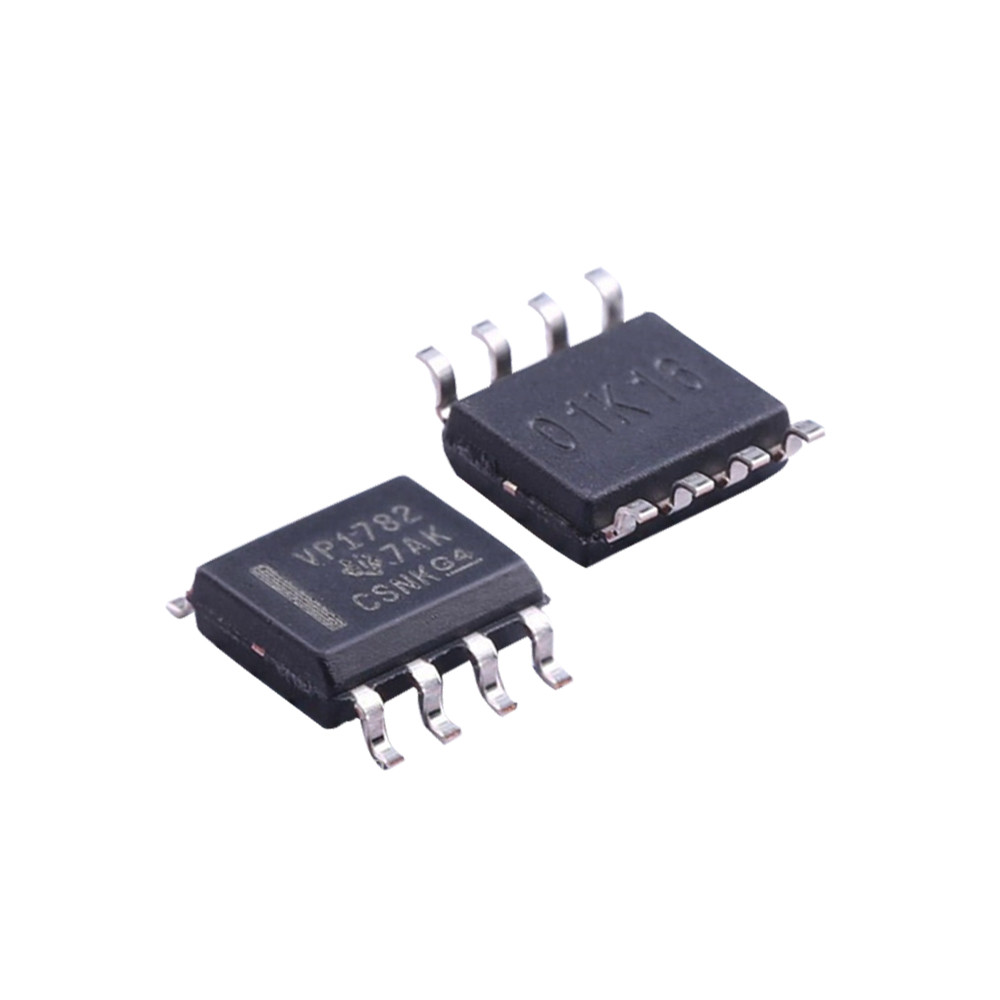

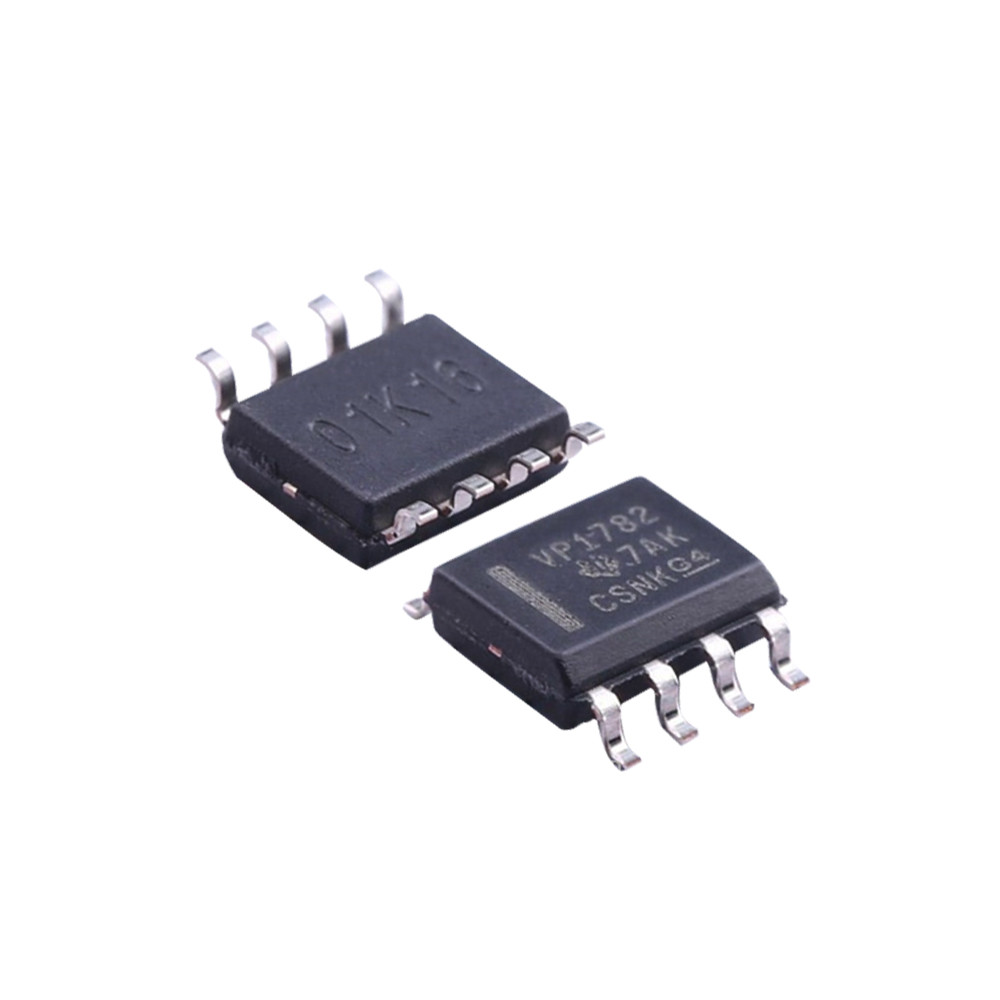

IC Integrated Circuits SN65HVD1782DR SOIC-8 485 Interface IC

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: SN65HVD1782DR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: SOIC-8
Series: SN65HVD1782
Factory Pack Quantity: 2500
Product Type: 485 Interface IC
Product Description

IC Integrated Circuits SN65HVD1782DR SOIC-8 485 Interface IC



Product Description:

The SN65HVD178x devices are designed to survive overvoltage faults such as direct shorts to power supplies, mis-wiring faults, connector failures, cable crushes, and tool mis-applications. The devices are also robust to ESD events with high levels of protection to the human-body-model specification. The SN65HVD178x devices combine a differential driver and a differential receiver, which operate from a single power supply. In the SN65HVD1782, the driver differential outputs and the receiver differential inputs are connected internally to form a bus port suitable for half-duplex (two-wire bus) communication. This port features a wide commonmode voltage range, making the devices suitable for multipoint applications over long cable runs. These devices are characterized from –40°C to 125°C. These devices are pin-compatible with the industrystandard SN75176 transceiver, making them drop-in upgrades in most systems. These devices are fully compliant with ANSI TIA/EIA 485-A with a 5-V supply and can operate with a 3.3-V supply with reduced driver output voltage for lowpower applications. For applications where operation is required over an extended common-mode voltage range, see the SN65HVD1785 (SLLS872) data sheet.



Application:

• HVAC Networks • Security Electronics • Building Automation • Telecommunication Equipment • Motion Control • Industrial Networks



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: RS-485 Interface IC
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Series: SN65HVD1782
Operating Supply Current: 6 mA
Brand: Texas Instruments
Input Voltage: 3.15 V to 5.5 V
Product Type: RS-485 Interface IC
Shutdown: No Shutdown
Factory Pack Quantity: 2500
Subcategory: Interface ICs
