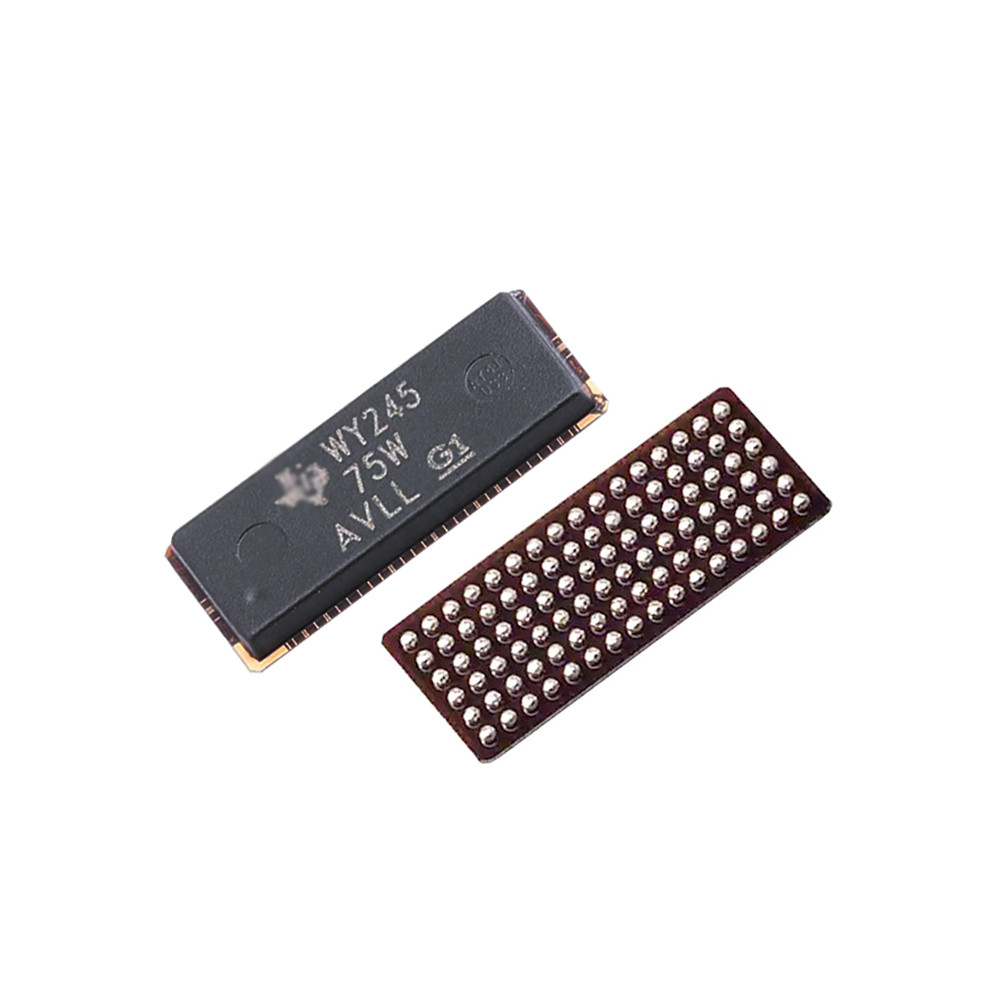

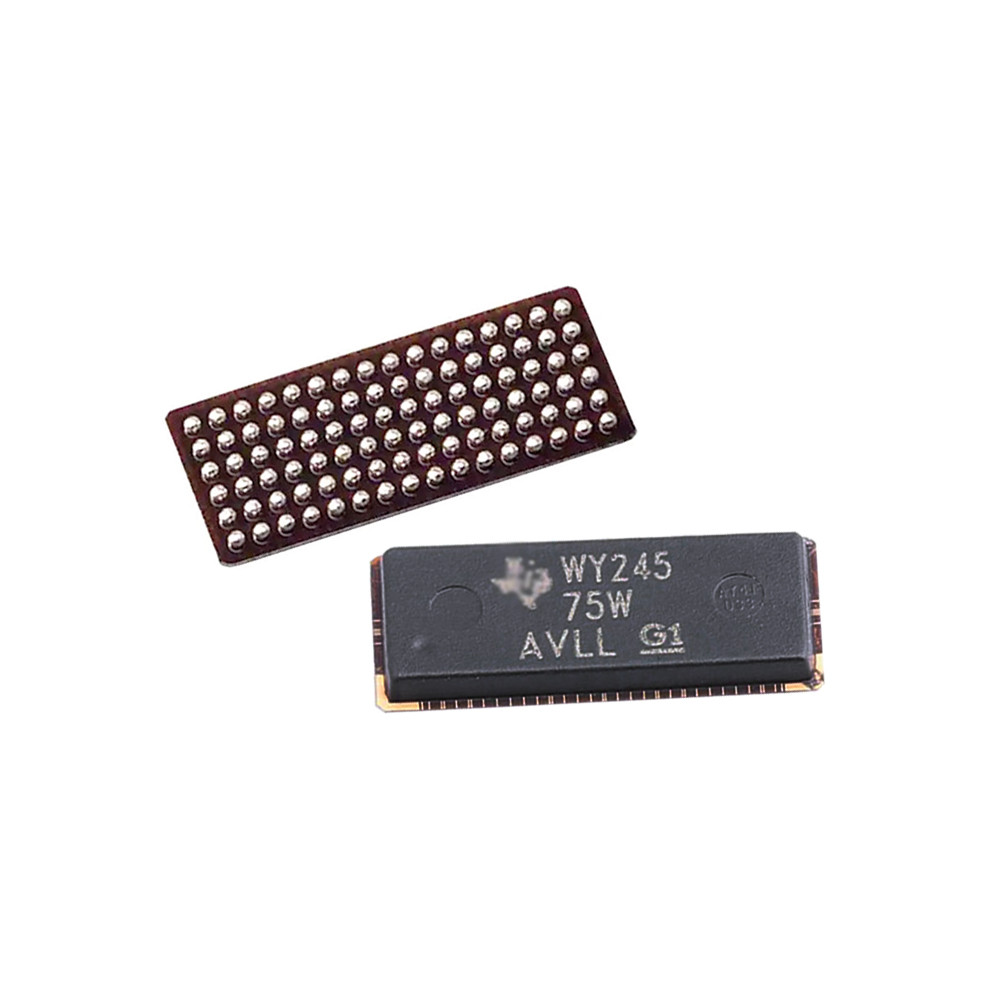

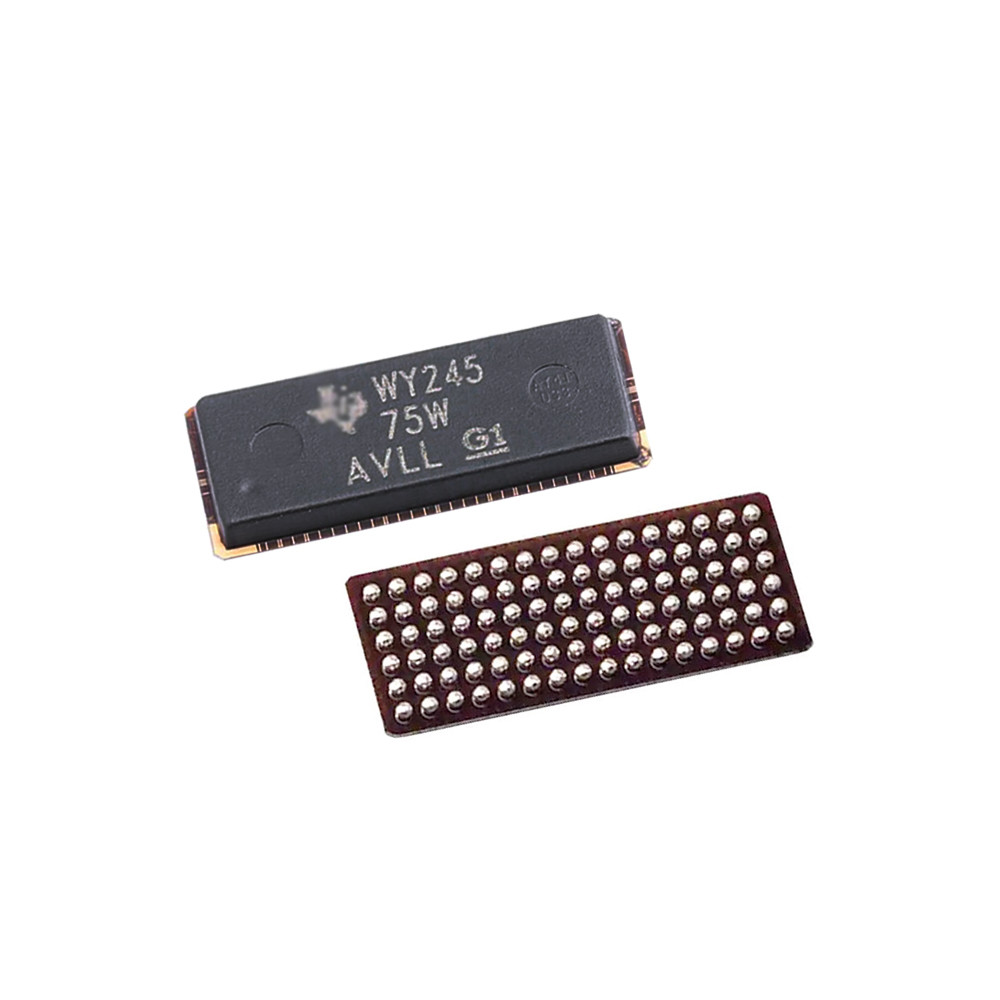

IC Integrated Circuits SN74AVC32T245ZKER BGA-96 Translation - Voltage Levels

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: SN74AVC32T245ZKER
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: BGA-96
Series: SN74AVC32T245
Factory Pack Quantity: 1000
Product Type: Translation - Voltage Levels
Product Description

IC Integrated Circuits SN74AVC32T245ZKER BGA-96 Translation - Voltage Levels



Product Description:

This 32-bit noninverting bus transceiver uses two separate, configurable power-supply rails. The SN74AVC32T245 device is optimized to operate with V CCA/V CCB set from 1.4 V to 3.6 V. It is operational with V CCA/V CCB as low as 1.2 V. The A port is designed to track VCCA. VCCA and accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB and accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V voltage nodes. The SN74AVC32T245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable ( OE) input can disable the outputs so the buses are effectively isolated. The SN74AVC32T245 is designed so that the control pins (1DIR, 2DIR, 3DIR, 4DIR, 1 OE, 2 OE, 3 OE, and 4 OE) are supplied by VCCA.



Application:

• HVAC Networks • Security Electronics • Building Automation • Telecommunication Equipment • Motion Control • Industrial Networks



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Translation - Voltage Levels
RoHS: YES
Series: SN74AVC32T245
Type: Bus Transceiver
Mounting Style: SMD/SMT
Package / Case: BGA-Microstar-96
Brand: Texas Instruments
Low Level Output Current: 12 mA
Operating Temperature Range: - 40 C to + 85 C
Product Type: Translation - Voltage Levels
Factory Pack Quantity: 1000
Subcategory: Logic ICs





FAQ:

  • Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

  • Can i get a free sample?

You can ask our staff for apply free samples.

  • What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

  • What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

  • How will you Guaranteed quality?

Quality Warranty Period:12 Months.

  • Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

  • Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
