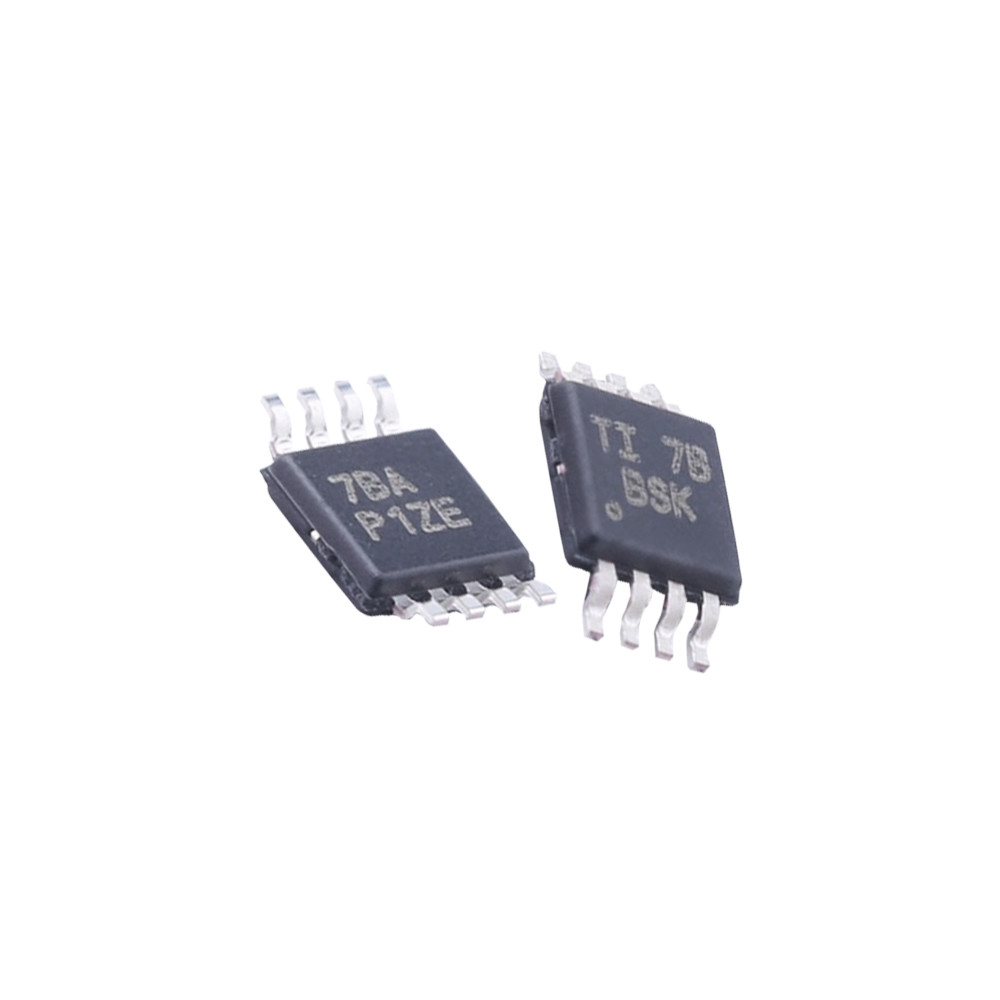

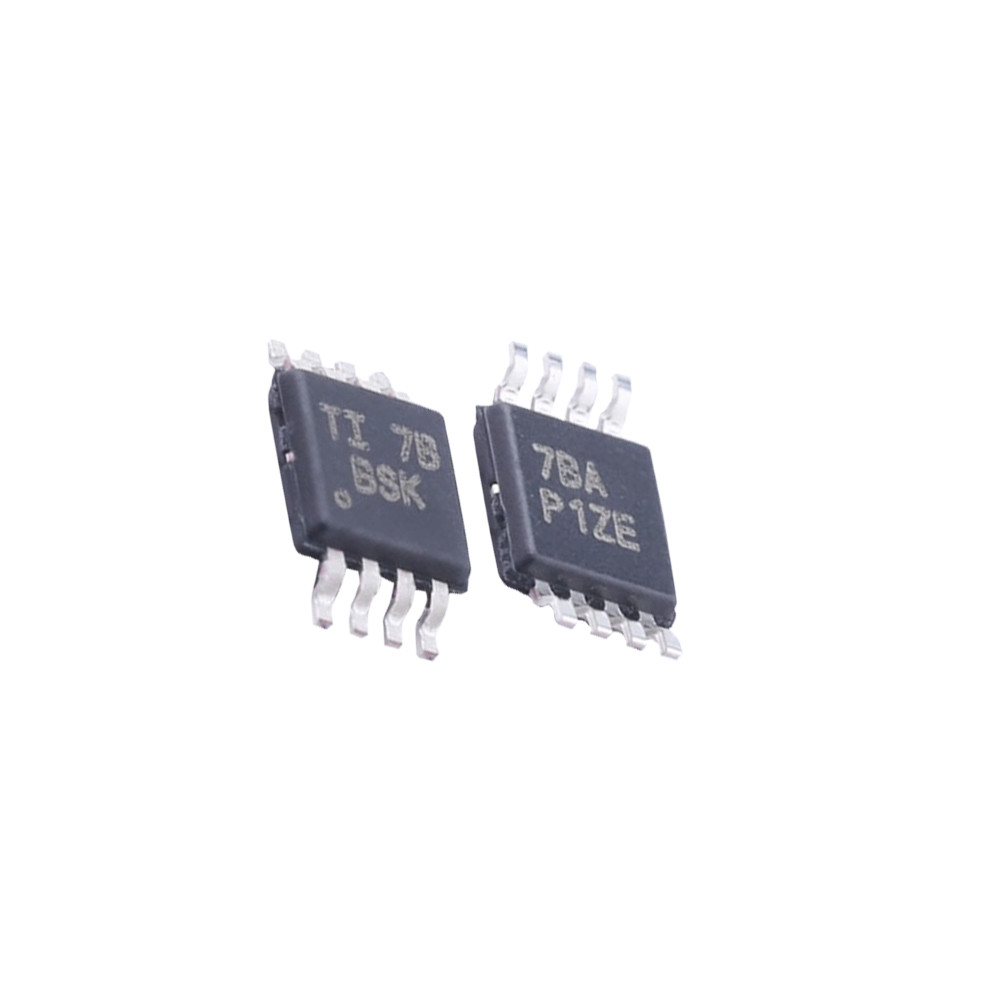

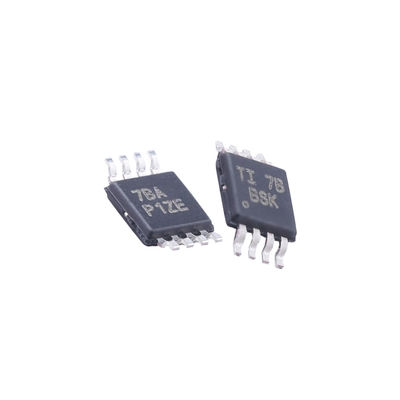

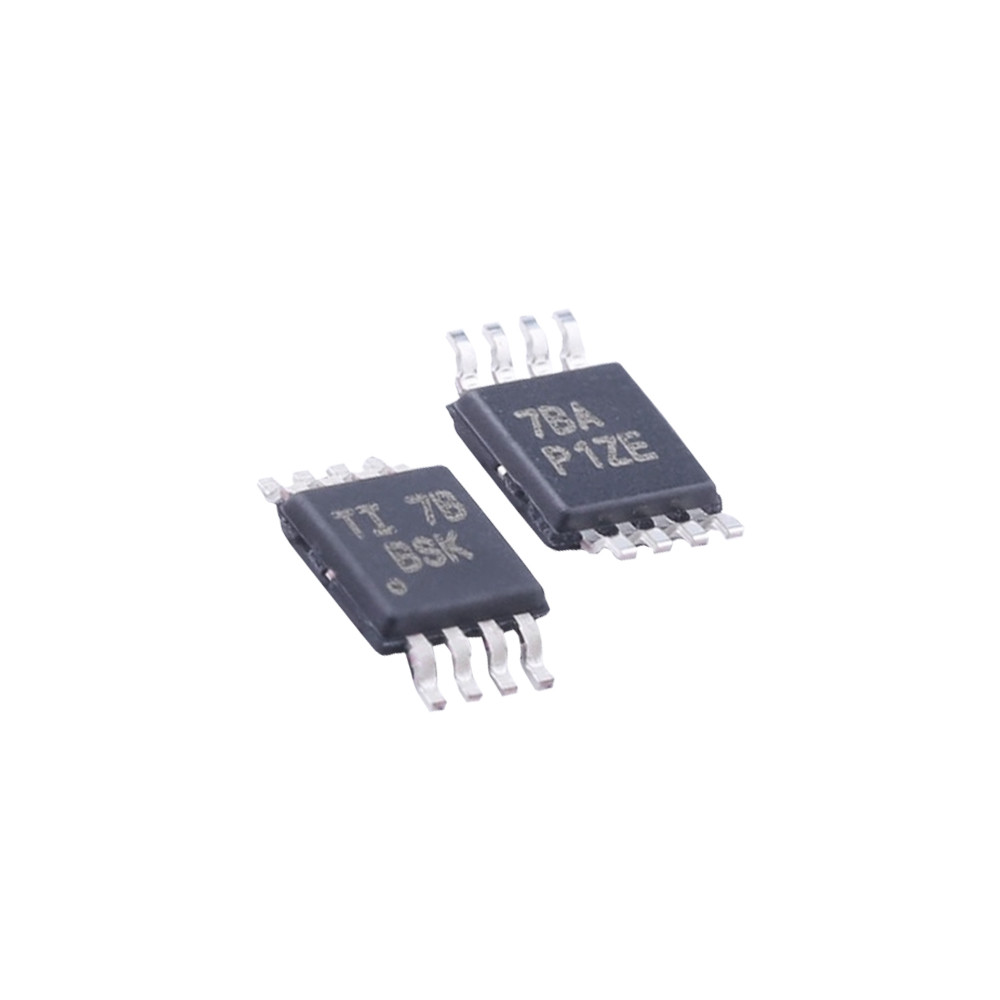

IC Integrated Circuits TCA9517ADGKR VSSOP-8 Signal Buffers

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TCA9517ADGKR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: VSSOP-8
Series: TCA9517A
Factory Pack Quantity: 2500
Product Type: Signal Buffers
Product Description

IC Integrated Circuits TCA9517ADGKR VSSOP-8 Signal Buffers



Product Description:

The TCA9517A is a bidirectional buffer with level shifting capabilities for I 2C and SMBus systems. It provides bidirectional voltage-level translation (uptranslation/down-translation) between low voltages (down to 0.9 V) and higher voltages (2.7 V to 5.5 V) in mixed-mode applications. This device enables I 2C and SMBus systems to be extended without degradation of performance, even during level shifting. The TCA9517A buffers both the serial data (SDA) and the serial clock (SCL) signals on the I 2C bus, thus allowing two buses of up to 400-pF bus capacitance to be connected in an I 2C application. The TCA9517A has two types of drivers: A-side drivers and B-side drivers. All inputs and I/Os are over-voltage tolerant to 5.5 V, even when the device is unpowered (VCCB and/or VCCA = 0 V). The TCA9517A offers a higher contention level threshold, VILC, than the TCA9517, which allows connections to slaves which have weaker pulldown ability.



Application:

• Servers • Routers (Telecom Switching Equipment) • Industrial Equipment • Products with Many I 2C Slaves and/or Long PCB Traces



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Interface - Signal Buffers, Repeaters
RoHS: YES
Product: Repeaters
Interface Type: I2C, SMBus
Mounting Style: SMD/SMT
Package / Case: VSSOP-8
Brand: Texas Instruments
Operating Supply Voltage: 900 mV to 5.5 V
Product Type: Signal Buffers, Repeaters
Series: TCA9517A
Factory Pack Quantity: 2500
Subcategory: Interface ICs
