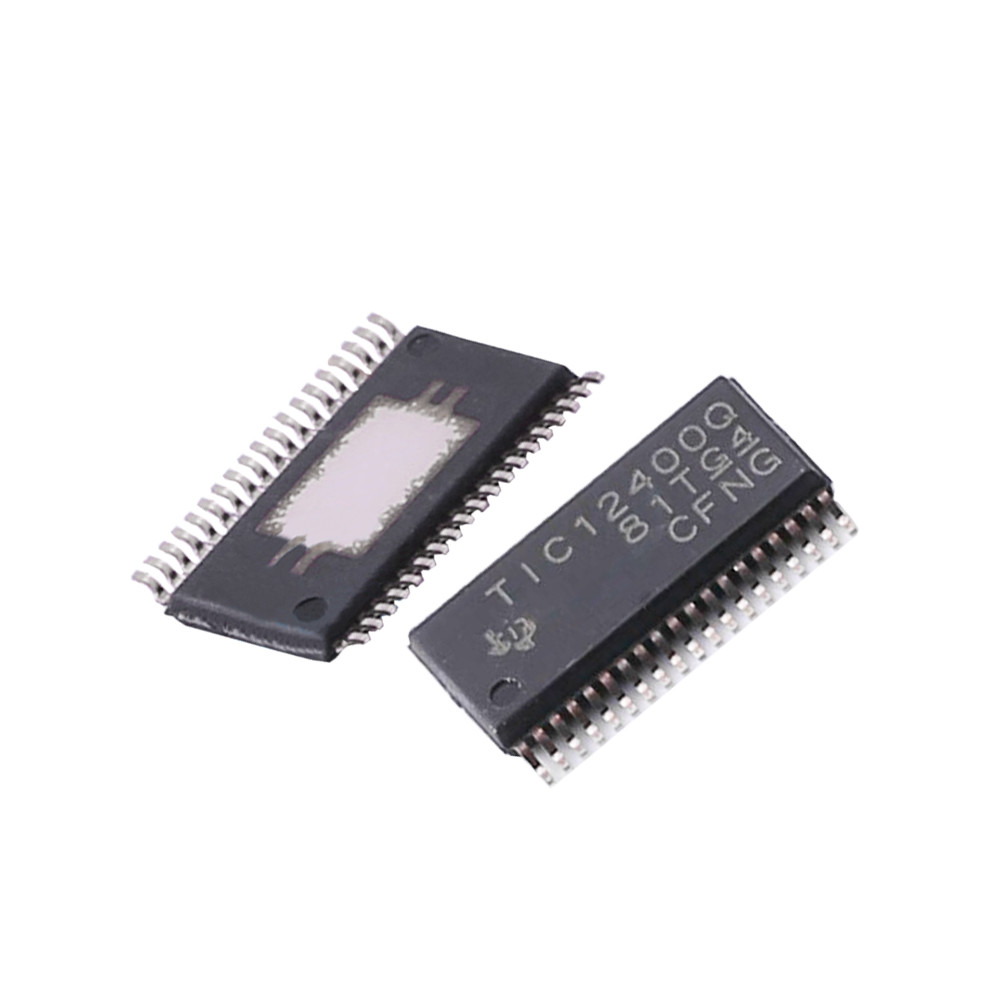

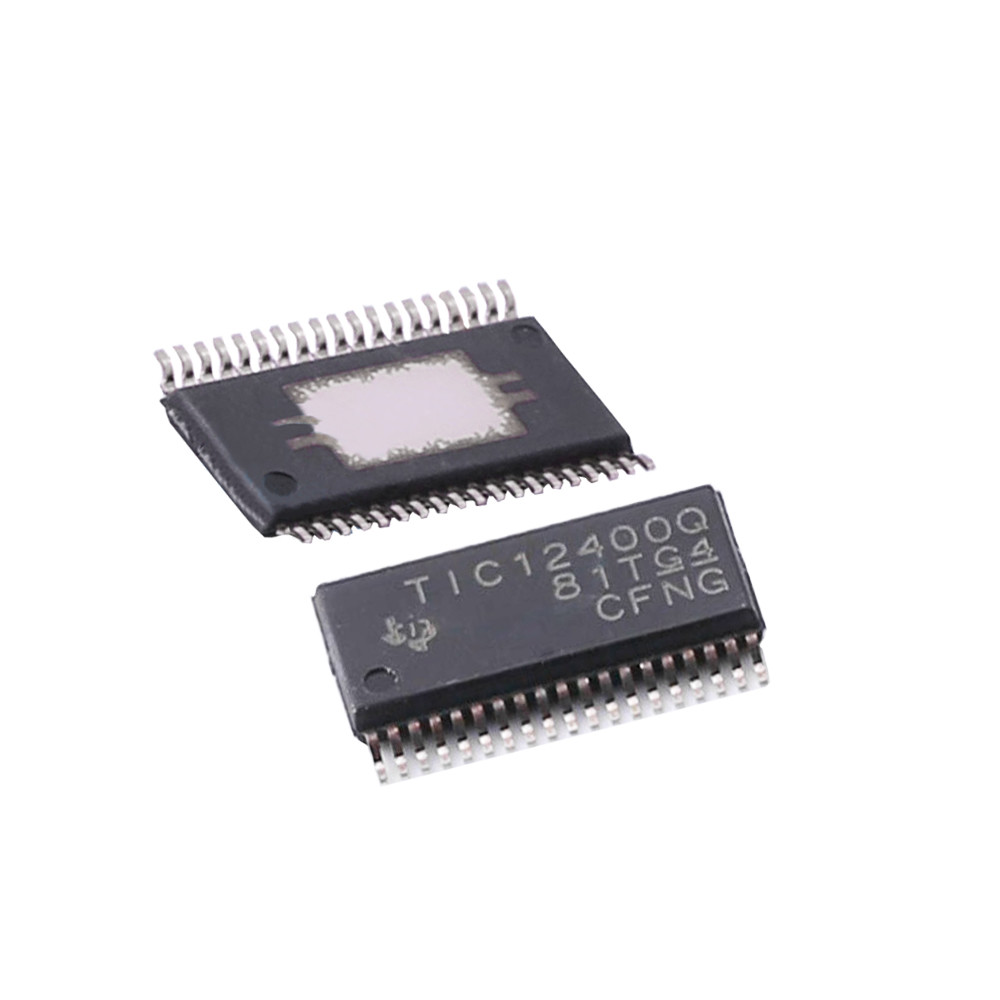

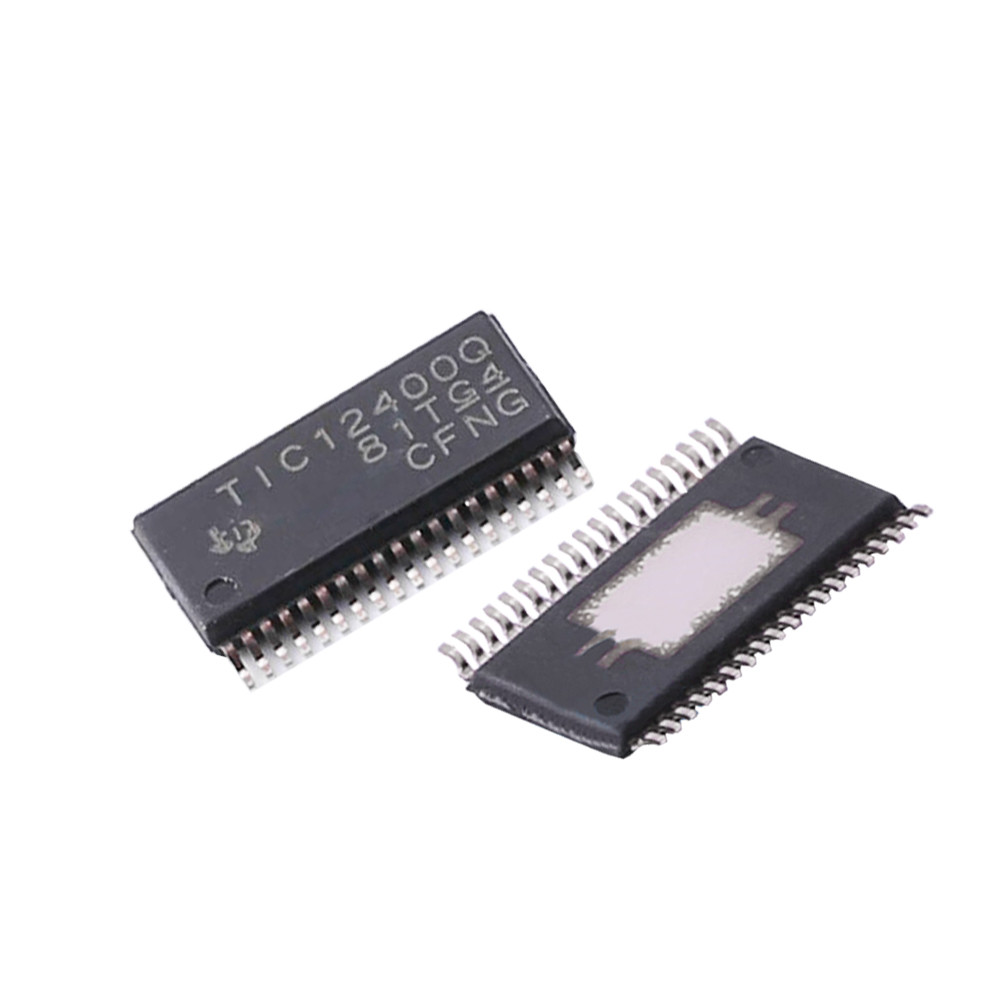

TIC12400QDCPRQ1 HTSSOP-38 Interface ICs Integrated Circuits

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TIC12400QDCPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
RoHS: PB Free
Mounting Style: SMD/SMT
Package: HTSSOP-38
Series: TIC12400-Q1
Factory Pack Quantity: 2000
Subcategory: Interface ICs
High Light:

HTSSOP-38 Interface ICs


TIC12400-Q1 Interface ICs



Product Description

IC Integrated Circuits TIC12400QDCPRQ1 HTSSOP-38 Interface ICs


Product Description:

The TIC12400-Q1 is an advanced Multiple Switch Detection Interface (MSDI) designed to detect external switch status in a 12-V automotive system. The TIC12400-Q1 features an integrated 10-bit ADC to monitor multi-position analog switches and a comparator to monitor digital switches independently of the MCU. Detection thresholds can be programmed for the ADC and the comparator to support various switch topologies and system non-idealities. The device monitors 24 direct switch inputs, with 10 inputs configurable to monitor switches connected to either ground or battery. 6 unique wetting current settings can be programmed for each input to support different application scenarios. The device supports wake-up operation on all switch inputs to eliminate the need to keep the MCU active continuously, thus reducing power consumption of the system. The TIC12400-Q1 also offers integrated fault detection, ESD protection, and diagnostic functions for improved system robustness. The TIC12400-Q1 supports 2 modes of operations: continuous and polling mode. In continuous mode, wetting current is supplied continuously. In polling mode, wetting current is turned on periodically to sample the input status based on a programmable timer, thus the system power consumption is significantly reduced.



• Body control module and gateway • Automotive lighting • Heating and cooling • Power seats • Mirrors


Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Interface - Specialized
Type: Multiple Switch Detection Interface
Operating Supply Current: 5.6 mA
Mounting Style: SMD/SMT
Package / Case: HTSSOP-38
Brand: Texas Instruments
Operating Supply Voltage: 4.5 V to 35 V
Product Type: Interface - Specialized
Series: TIC12400-Q1
Factory Pack Quantity: 2000
Subcategory: Interface ICs
