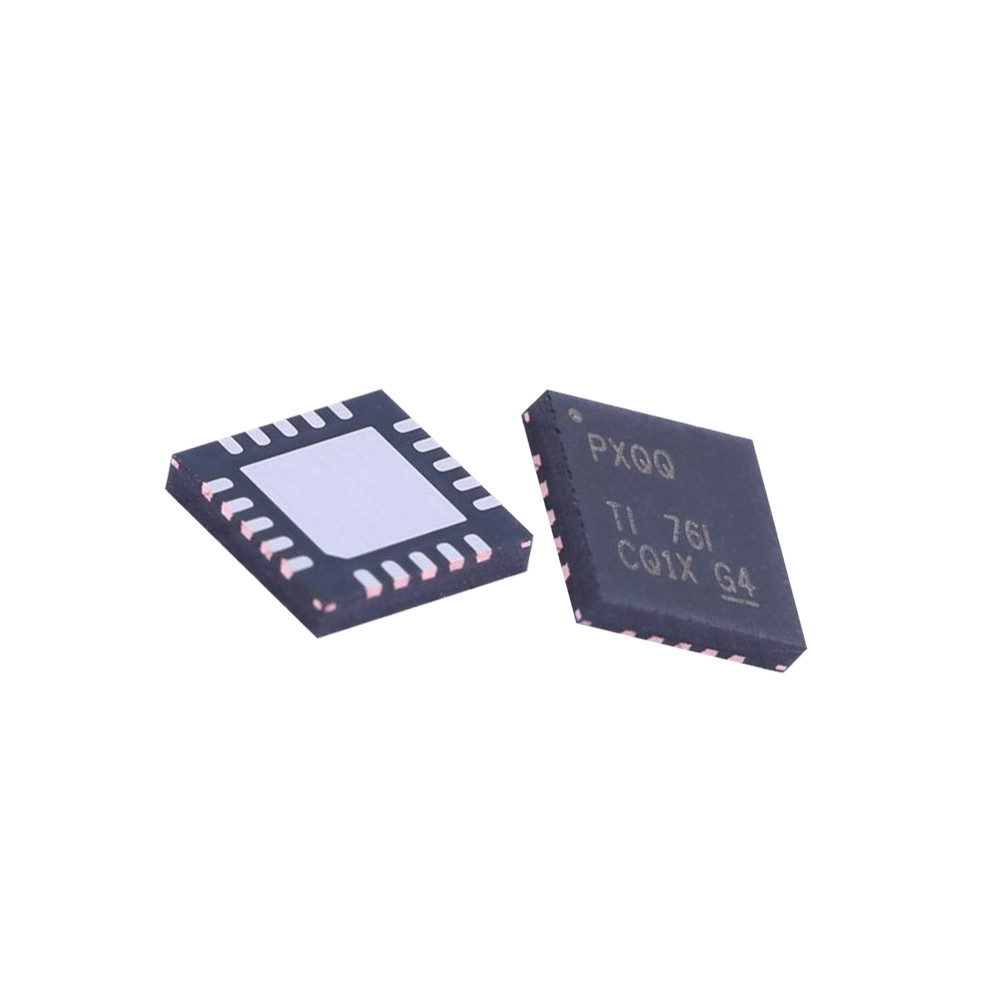

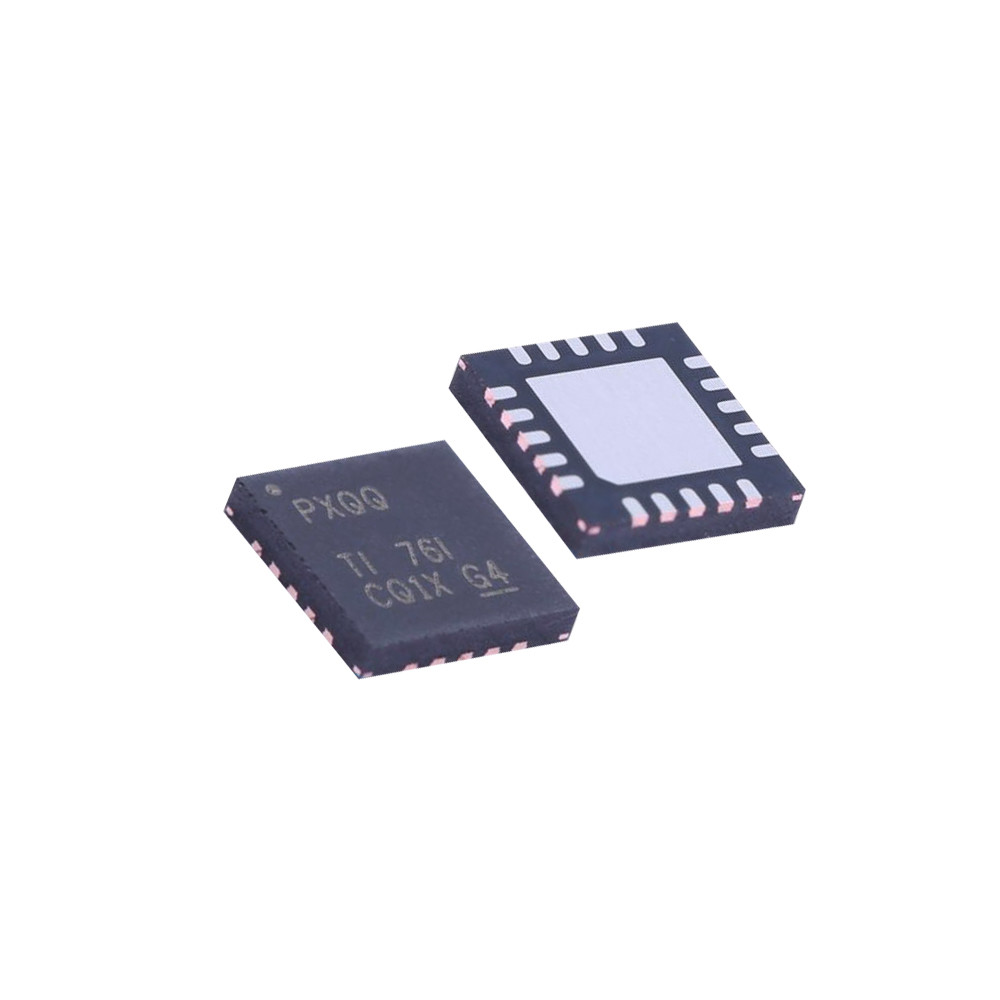

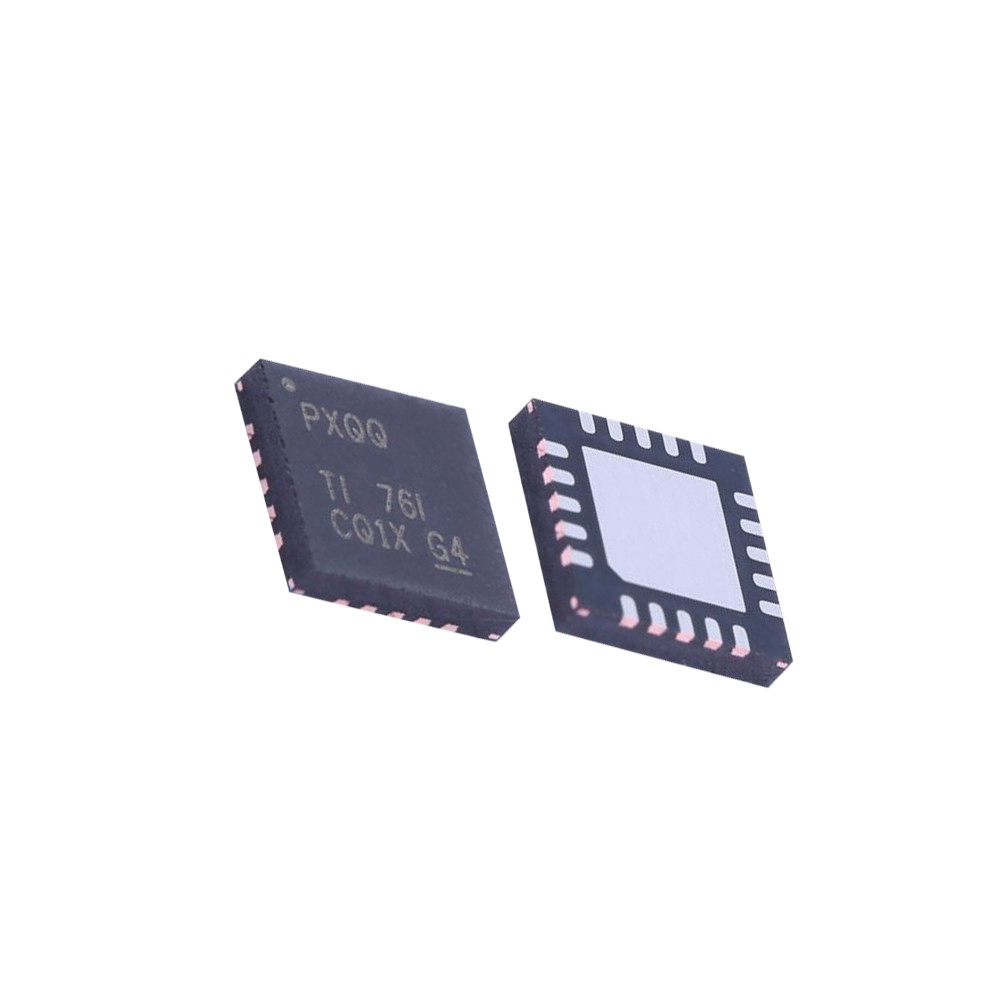

IC Integrated Circuits TPS7A3301RGWR VQFN-20 LDO Voltage Regulators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TPS7A3301RGWR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: VQFN-20
Series: TPS7A3301
Factory Pack Quantity: 3000
Product Type: LDO Voltage Regulators
Product Description

IC Integrated Circuits TPS7A3301RGWR VQFN-20 LDO Voltage Regulators



Product Description:

The TPS7A33 series of linear regulators are negative voltage (–36 V), ultralow-noise (16-μVRMS, 72-dB PSRR) linear regulators capable of sourcing a maximum load of 1 A. The TPS7A33 series include a complementary metal oxide semiconductor (CMOS) logic-level-compatible enable pin (EN) to allow for user-customizable power management schemes. Other features available include built-in current limit and thermal shutdown features to protect the device and system during fault conditions. The TPS7A33 family is designed using bipolar technology primarily for high-accuracy, high-precision instrumentation applications, where clean voltage rails are critical to maximize system performance. This feature makes it ideal to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry. In addition, the TPS7A33 family of linear regulators is suitable for post DC-DC converter regulation. By filtering out the output voltage ripple inherent to DC-DC switching conversion, maximum system performance is ensured in sensitive instrumentation, medical, test and measurement, audio, and RF applications. For applications where positive and negative high-performance rails are required, consider the TPS7A4700 positive high-voltage, ultralow-noise, low-dropout linear regulator as well.



Application:

• Supply Rails for Operational Amplifiers, DACs, ADCs, and Other High-Precision Analog Circuitry • Audio • Post DC-DC Converter Regulation and Ripple Filtering • Test and Measurement • Medical • Industrial Instrumentation • Base Stations and Telecom Infrastructure • 12-V and 24-V Industrial Buses



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: LDO Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: VQFN-20
Input Voltage, Min: - 36 V
Input Voltage, Max: - 3 V
Brand: Texas Instruments
Output Voltage Range: - 33 V to - 1.182 V
Product Type: LDO Voltage Regulators
Factory Pack Quantity: 3000
Subcategory: PMIC - Power Management ICs
Type: Ultralow Noise Negative Voltage Regulators
