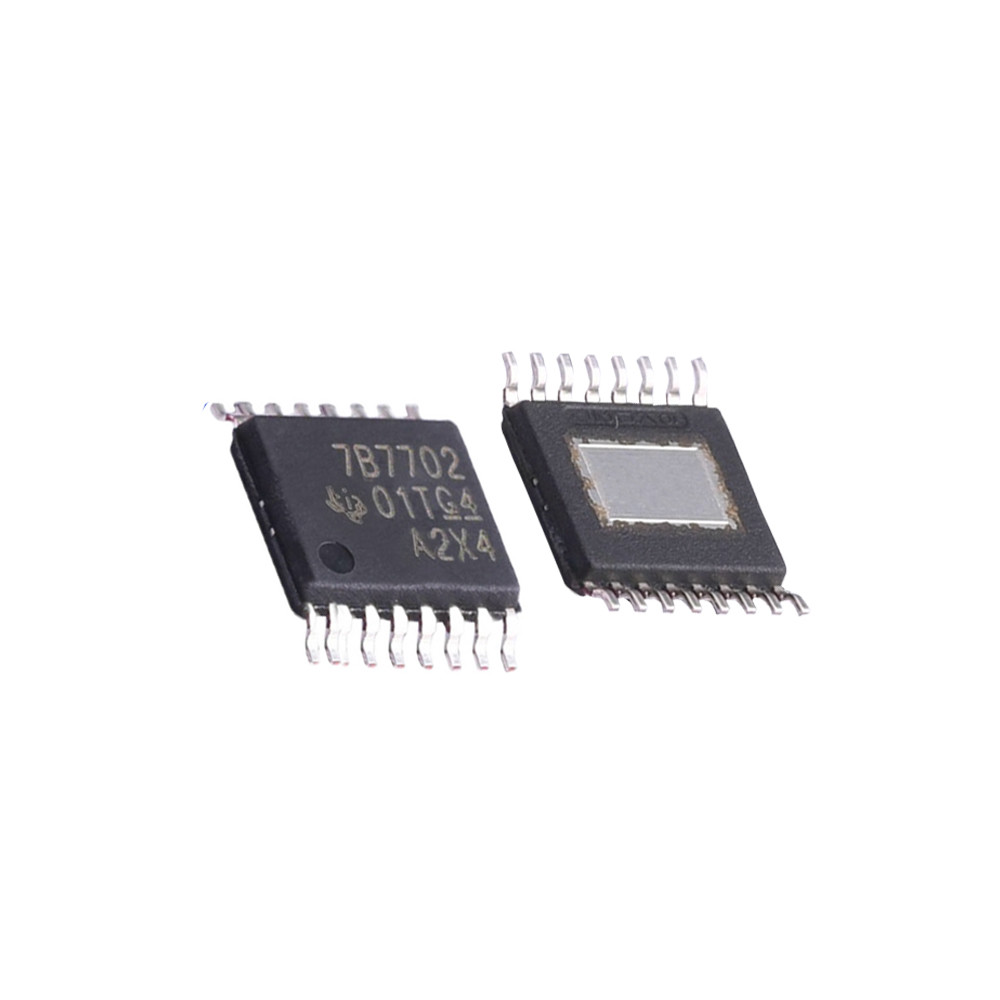

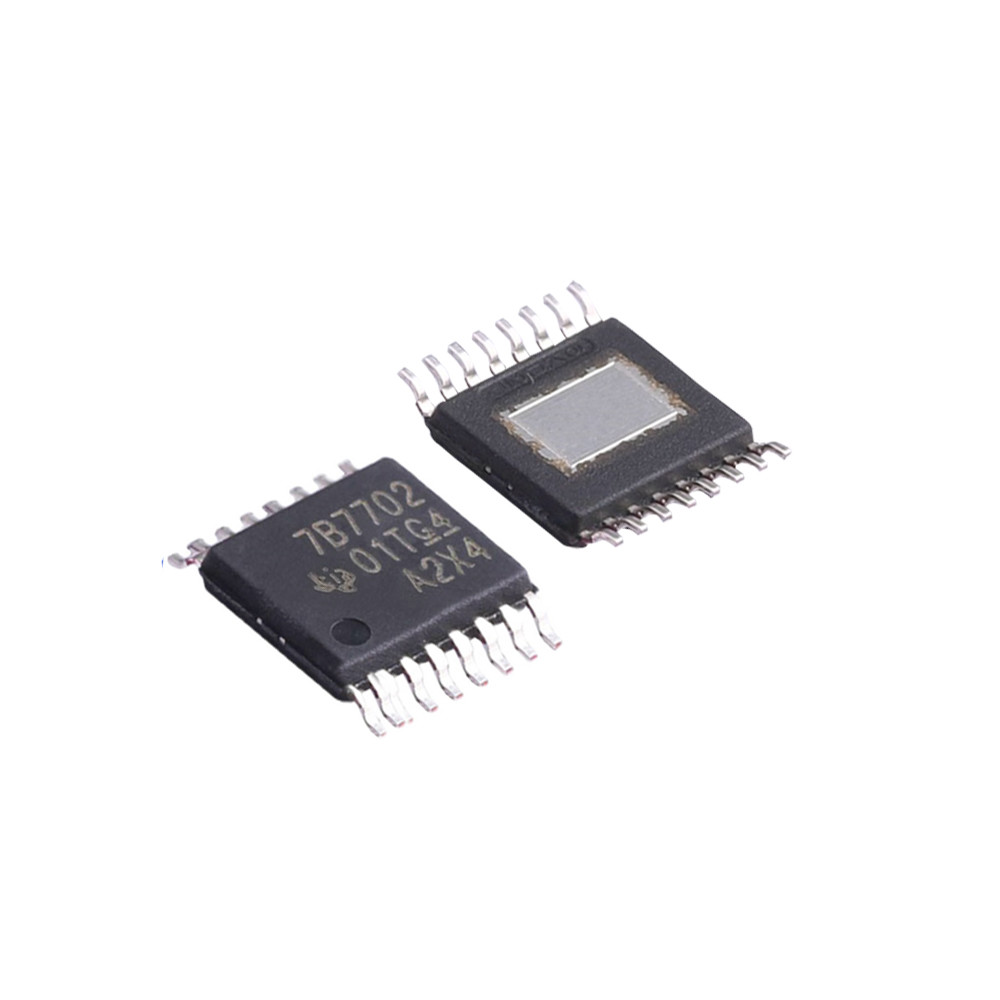

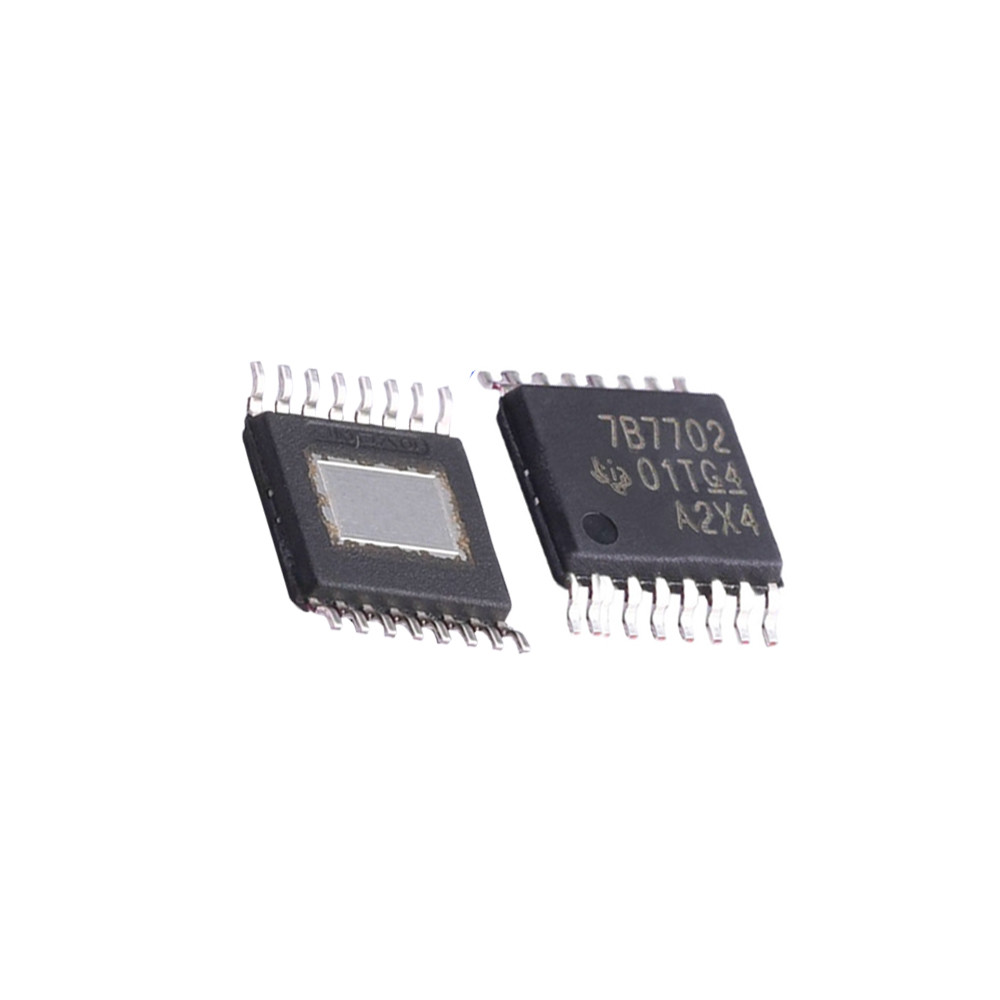

IC Integrated Circuits TPS7B7702QPWPRQ1 HTSSOP-16 LDO Voltage Regulators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TPS7B7702QPWPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: HTSSOP-16
Series: TPS7B7702-Q1
Factory Pack Quantity: 2000
Product Type: LDO Voltage Regulators
Product Description

IC Integrated Circuits TPS7B7702QPWPRQ1 HTSSOP-16 LDO Voltage Regulators



Product Description:

The TPS7B770x-Q1 family of devices feature a single and dual, high-voltage low-dropout regulator (LDO) with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection). These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V. These devices provide diagnostics through the current sense and error pins. To monitor the load current, a high-side current-sense circuitry provides a proportional analog output to the sensed load current. The accurate current sense allows detection of open, normal, and short-circuit conditions without the need for further calibration. Current sense can be multiplexed between channels and devices to save analog-to-digital converter (ADC) resources. Each channel also implements adjustable current limit with an external resistor. An integrated reverse polarity diode eliminates the need for an external diode. These devices feature standard thermal shutdown, short-to-battery protection on the output, and reverse current protection. Each channel has internal inductive clamp protection on the output during inductive switch off. These devices operate over a –40°C to +125°C ambient temperature range.



Application:

• Infotainment Active-Antenna Power Supplies • Surround-View Camera Power Supplies • High-Side Power Switch For Small-Current Applications



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: LDO Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: HTSSOP-16
Output Voltage: 1.5 V to 20 V
Input Voltage, Min: 4.5 V
Input Voltage, Max: 40 V
Brand: Texas Instruments
Product Type: LDO Voltage Regulators
Factory Pack Quantity: 2000
Subcategory: PMIC - Power Management ICs
Type: Dual Channel Antenna LDO with Current Sense
