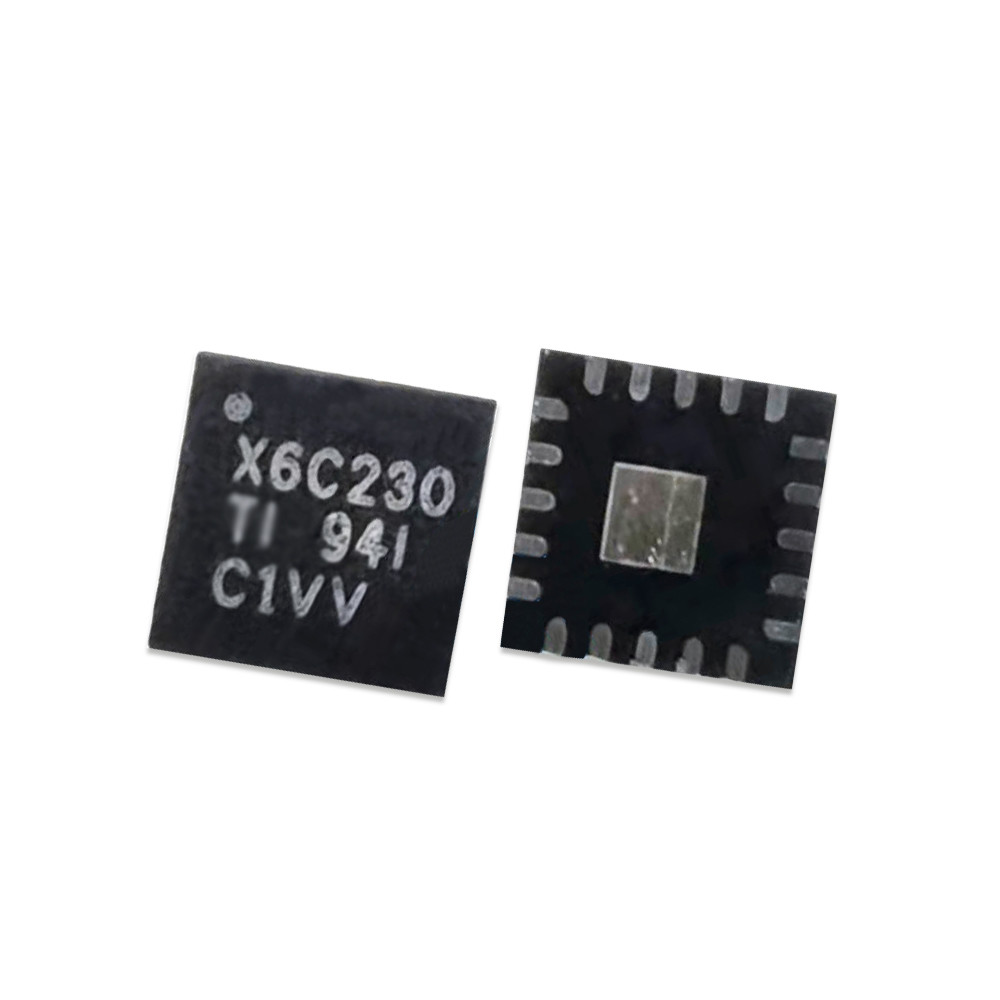

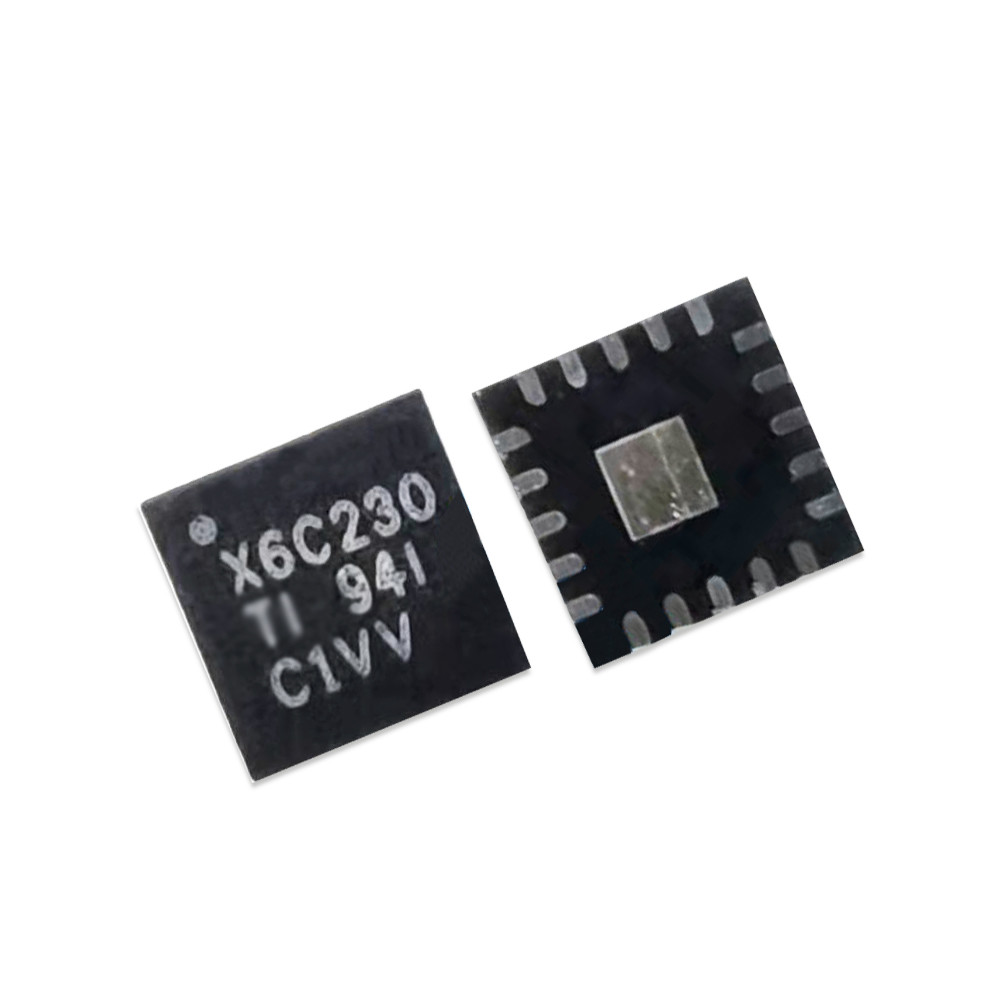

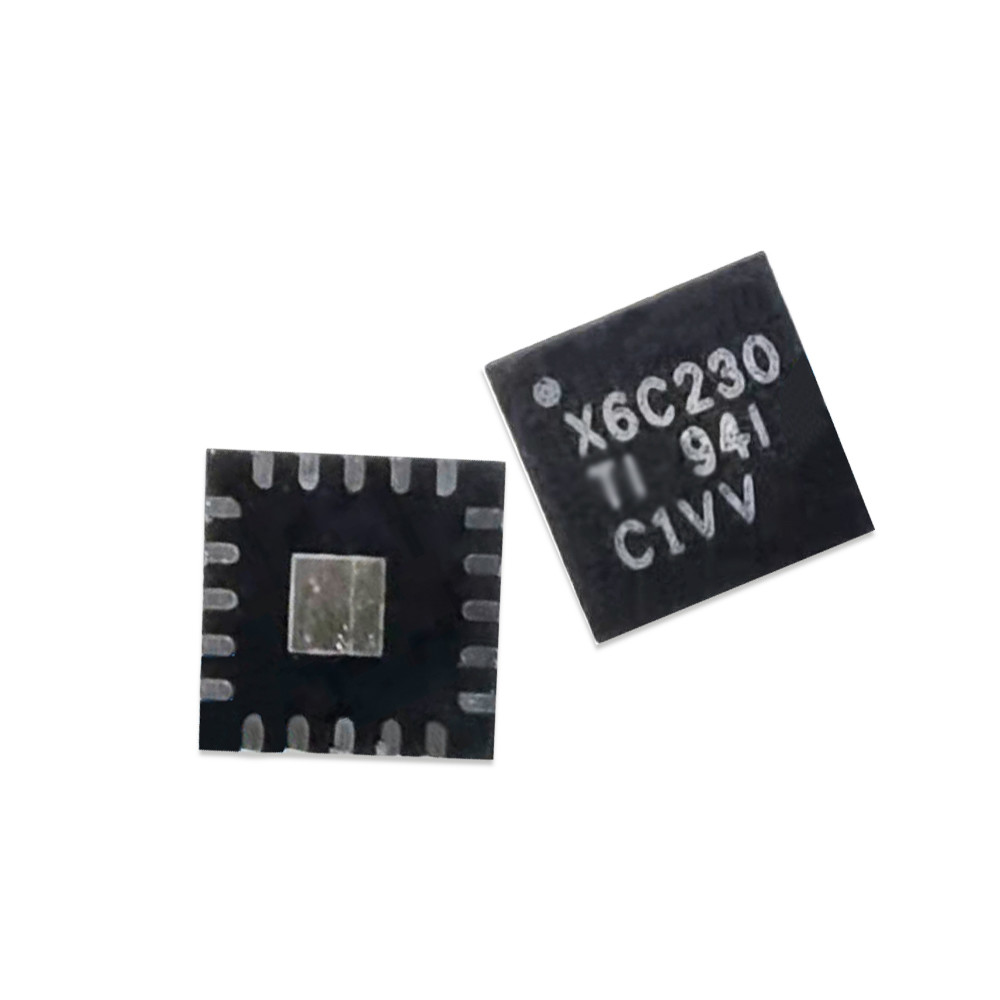

IC Integrated Circuits TPS56C230RJER VQFN-20 Switching Voltage Regulators

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TPS56C230RJER
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: VQFN-20
Series: TPS56C230
Factory Pack Quantity: 3000
Product Type: Switching Voltage Regulators
Product Description

IC Integrated Circuits TPS56C230RJER VQFN-20 Switching Voltage Regulators



Product Description:

The TPS56C230 is a high efficiency synchronous buck converter with integrated FETs. System designers can use the device in a wide variety of applications since it draws low standby current and requires few external components. The TPS56C230 employs D-CAP3 control that provides fast transient response and excellent line and load regulation with internal compensation. It also has a proprietary circuit that enables the device to support low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors. TPS56C230‘s MODE pin can be used to set Ecomode or FCCM mode for light-load operation. Ecomode maintains high efficiency during light load operation, and FCCM mode operations keeps output ripple small at light load. The device supports both internal and external soft-start time option. It has an internal fixed soft-start time 1.2 ms, but if the application needs a longer soft-start time, the external SS pin can be used to achieve it by connecting a external capacitor. The TPS56C230 integrates power good indicator and provides output discharge function. It provides complete protection including OVP, UVP, OCP, OTP and UVLO. The device is available in a 20-pin 3.0- mm x 3.0-mm HotRod package and the junction temperature is specified from –40°C to 125°C.



Application:

• DTV and Set-top box • PC and Industrial PC • Wired networking • Distributed power systems



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: VQFN-HR-20
Brand: Texas Instruments
Input Voltage: 4.5 V to 18 V
Product Type: Switching Voltage Regulators
Shutdown: Shutdown
Factory Pack Quantity: 3000
Subcategory: PMIC - Power Management ICs
Supply Voltage - Min: 4.5 V
Type: Synchronous
