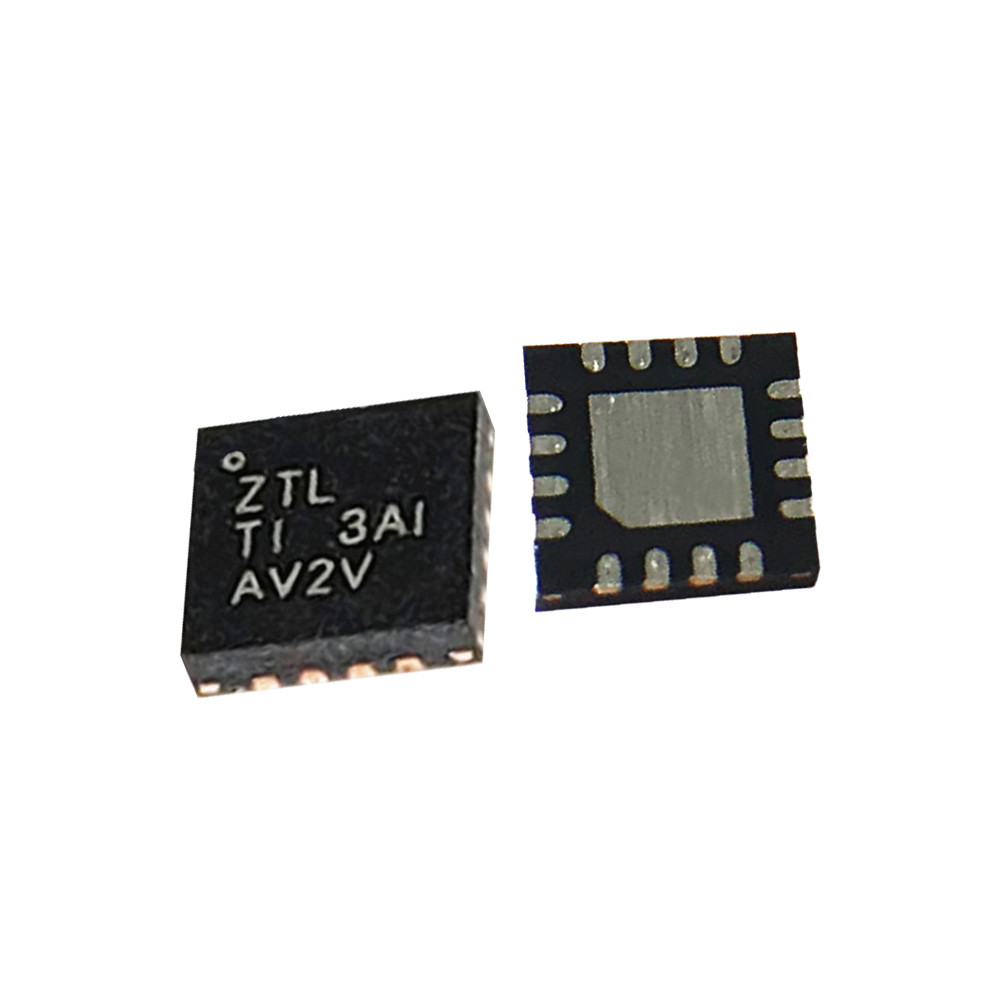

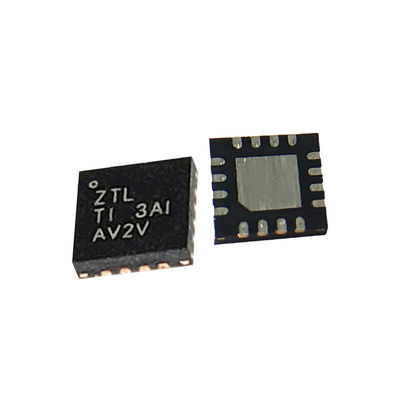

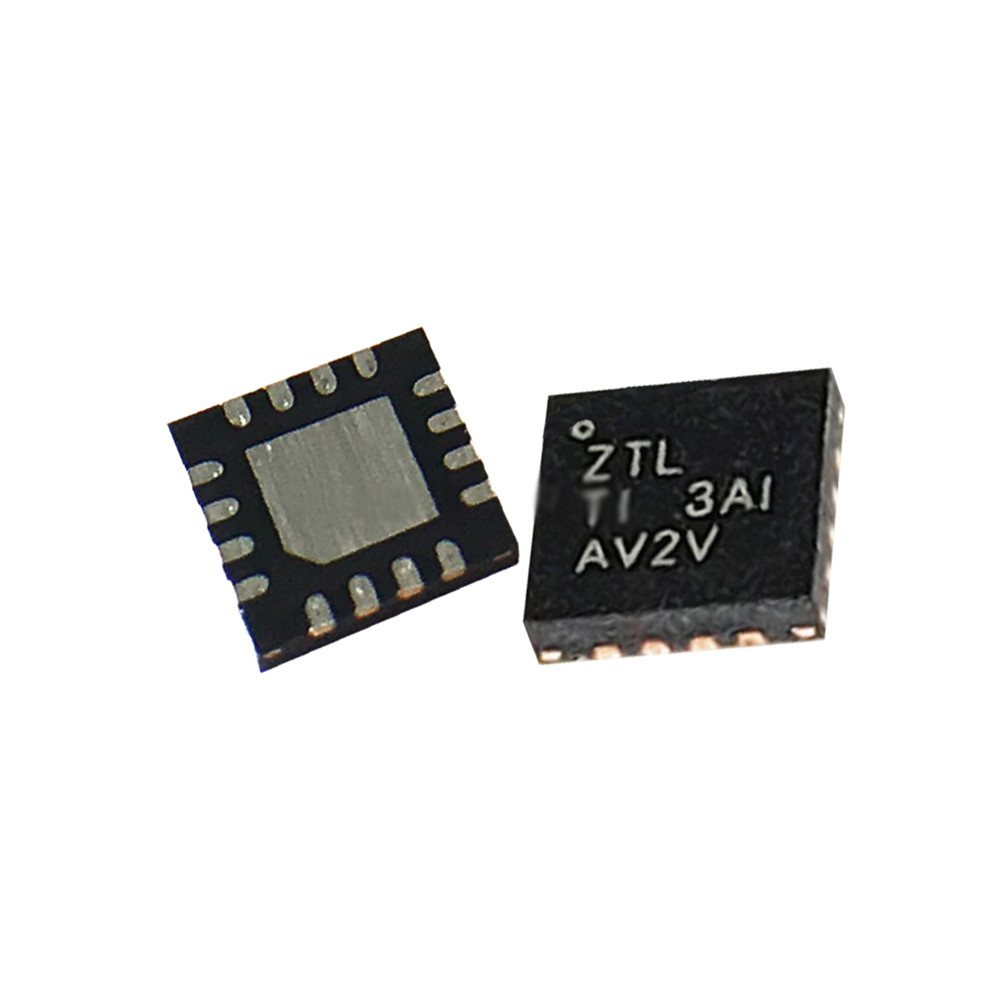

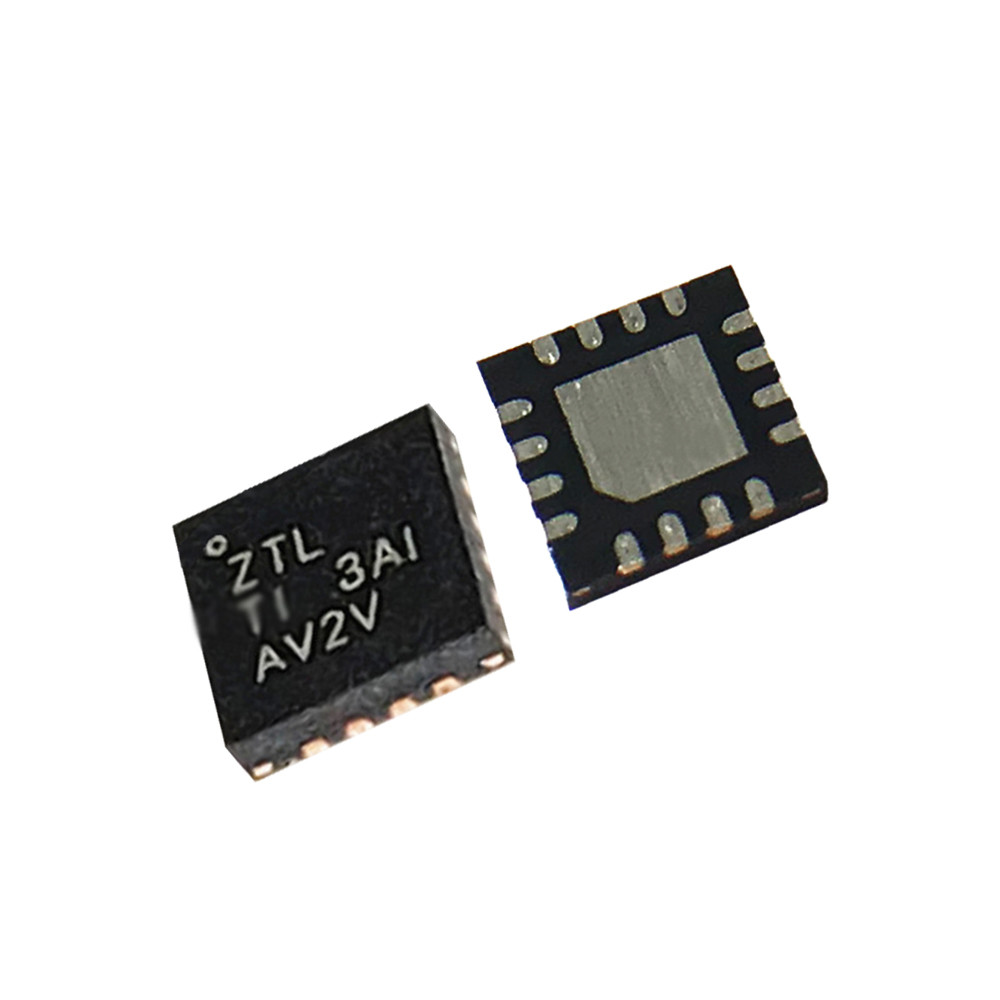

TS3A225ERTER IC Integrated Circuits WQFN-16 Analog Switch ICs

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: TS3A225ERTER
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
Specifications
Specifications
RoHS: PB Free
Mounting Style: SMD/SMT
Package: WQFN-16
Series: TS3A225E
Factory Pack Quantity: 3000
Product Type: Analog Switch ICs
High Light:

TS3A225E IC Integrated Circuits

,

WQFN-16 IC Integrated Circuits

,

TS3A225ERTER

Product Description

IC Integrated Circuits TS3A225ERTER WQFN-16 Analog Switch ICs



Product Description:

The TS3A225E is an audio headset switch device. The device detects the presence of an analog microphone and switches a system analog microphone pin between different connectors in an audio stereo jack. The microphone connection in a stereo connector can be swapped with the ground connection depending on manufacturer. When the TS3A225E detects a certain configuration, the device automatically connects the microphone line to the appropriate pin. The device also reports the presence of an analog microphone on an audio stereo jack. In some systems, it is desirable to connect the stereo jack pin to ground. The TS3A225E provides two internal low resistance (<100mΩ) FET switches for ground shorting.



Application:

• Mobile Phones/ Tablet PCs • Notebook Computers



Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: Analog Switch ICs
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: WQFN-16
Supply Voltage - Min: 2.7 V
Supply Voltage - Max: 4.5 V
Brand: Texas Instruments
Product Type: Analog Switch ICs
Factory Pack Quantity: 3000
Subcategory: Switch ICs
Supply Current - Max: 10 uA
Supply Type: Single Supply
