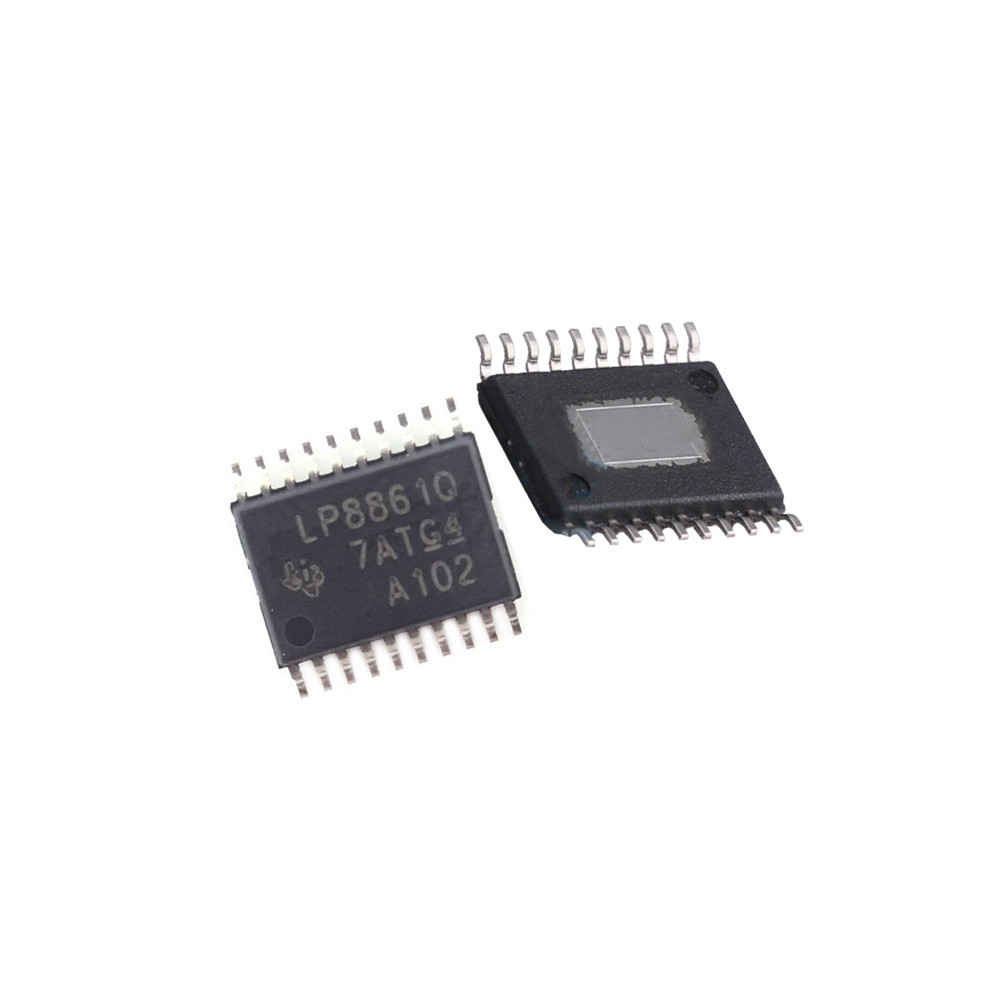

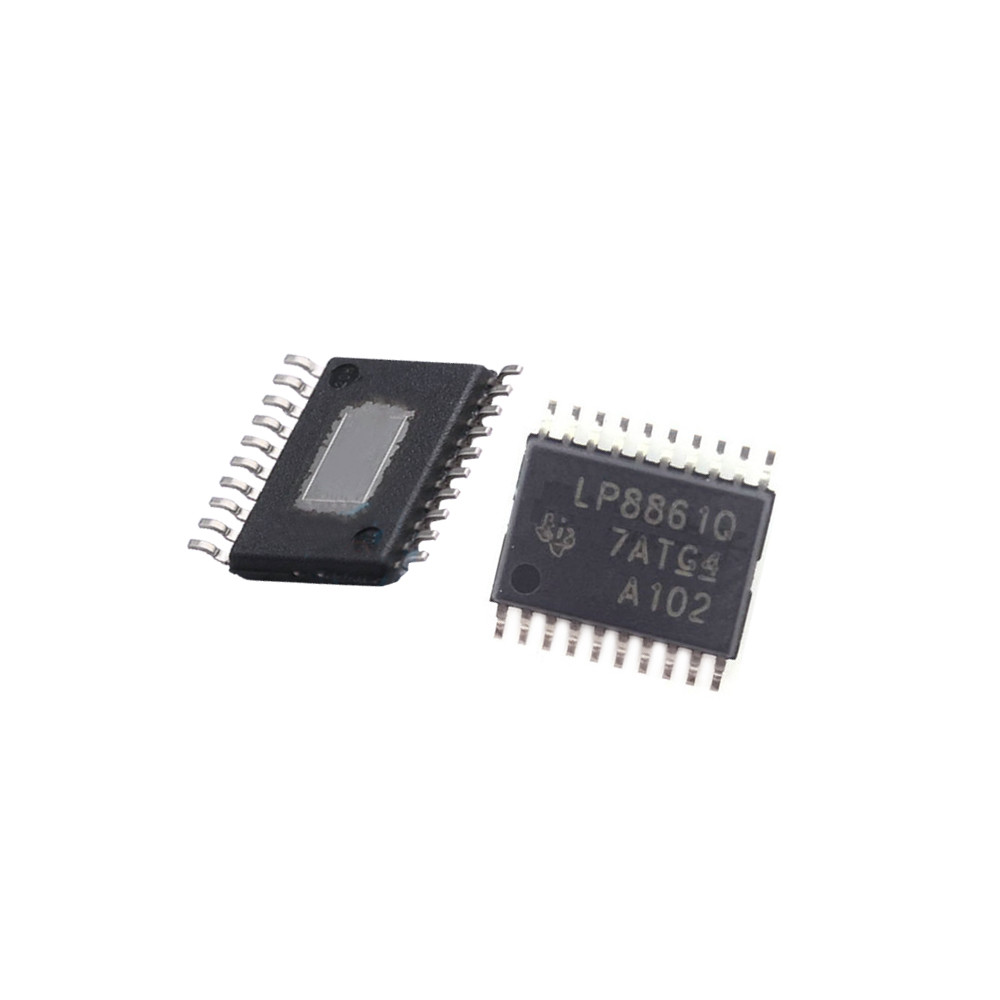

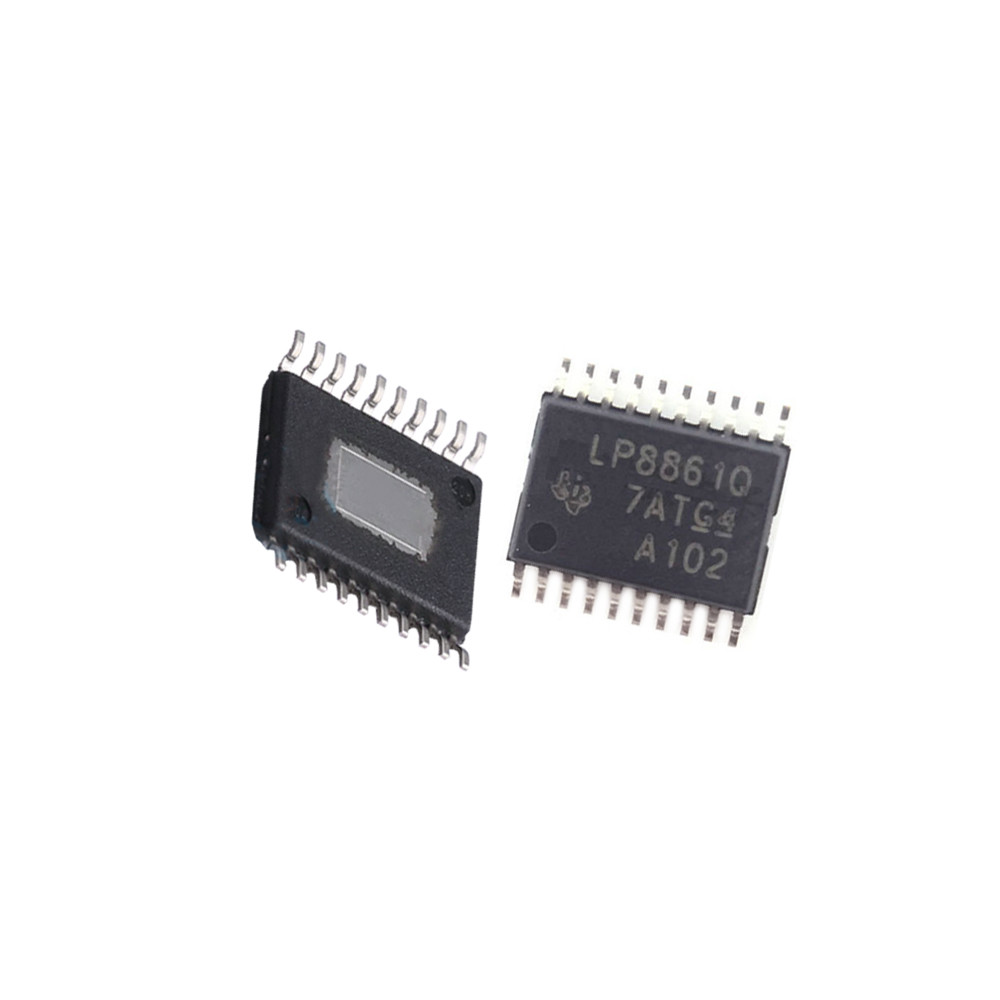

LP8861QPWPRQ1 PCB Pluggable Connector HTSSOP-20 LED Lighting Drivers

Product Details:
Place of Origin: USA
Brand Name: TI
Model Number: LP8861QPWPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
RoHS: PB Free
Mounting Style: SMD/SMT
Package: HTSSOP-20
Series: LP8861-Q1
Factory Pack Quantity: 2000
Product Type: LED Lighting Drivers
High Light:

SMD PCB Pluggable Connector


HTSSOP-20 PCB Pluggable Connector



Product Description

PCB Pluggable Connector LP8861QPWPRQ1 HTSSOP-20 LED Lighting Drivers


Product Description:

The LP8861-Q1 is an automotive high-efficiency, lowEMI, easy-to-use LED driver with integrated boost/SEPIC converter. It has four high-precision current sinks that can provide high dimming ratio brightness control with a PWM input signal. The boost/SEPIC converter has adaptive output voltage control based on the LED current sink headroom voltages. This feature minimizes the power consumption by adjusting the voltage to lowest sufficient level in all conditions. The boost/SEPIC converter supports spread spectrum for switching frequency and an external synchronization with dedicated pin. A wide-range adjustable frequency allows the LP8861-Q1 to avoid disturbance for AM radio band. The LP8861-Q1 has an option to drive an external pFET to disconnect the input supply from the system in the event of a fault and reduce inrush current and standby power consumption. The device can reduce LED current based on temperature measured with external NTC sensor to protect LED from overheating and extend LED lifetime. The input voltage range for the LP8861-Q1 is from 4.5 V to 40 V to support automotive stop/start and load dump condition. The LP8861-Q1 integrates extensive fault detection and protection features.



• Backlight for: – Automotive Infotainment – Automotive Instrument Clusters – Smart Mirrors – Heads-Up Displays (HUD) – Central Information Displays (CID) – Audio-Video Navigation (AVN)


Parameter Table:

Product Attribute Attribute Value
Manufacturer: Texas Instruments
Product Category: LED Lighting Drivers
Mounting Style: SMD/SMT
Package / Case: HTSSOP-20
Input Voltage, Min: 4.5 V
Input Voltage, Max: 40 V
Brand: Texas Instruments
Input Voltage: 4.5 V to 40 V
Product Type: LED Lighting Drivers
Factory Pack Quantity: 2000
Subcategory: Driver ICs
Type: LED Driver
