XEGARD-H0-0000-000-000000R5001 Optoelectronics Components NA LED High Power

Product Details:
Place of Origin: USA
Brand Name: Cree LED
Model Number: XEGARD-H0-0000-000-000000R5001
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: RFQ
Packaging Details: ESD/Vacuum/Foam/Cartons
Delivery Time: Immediately
Payment Terms: T/T, Western Union, escrow, Paypal, Visa, MoneyGram
Supply Ability: RFQ
Specifications Product Description Request A Quote
RoHS: PB Free
Mounting Style: SMD/SMT
Package: NA
Series: XLamp Element G
Factory Pack Quantity: 3000
Product Type: LED - High Power
High Light:

PB Free Optoelectronics Components


High Power Optoelectronics Components



Product Description

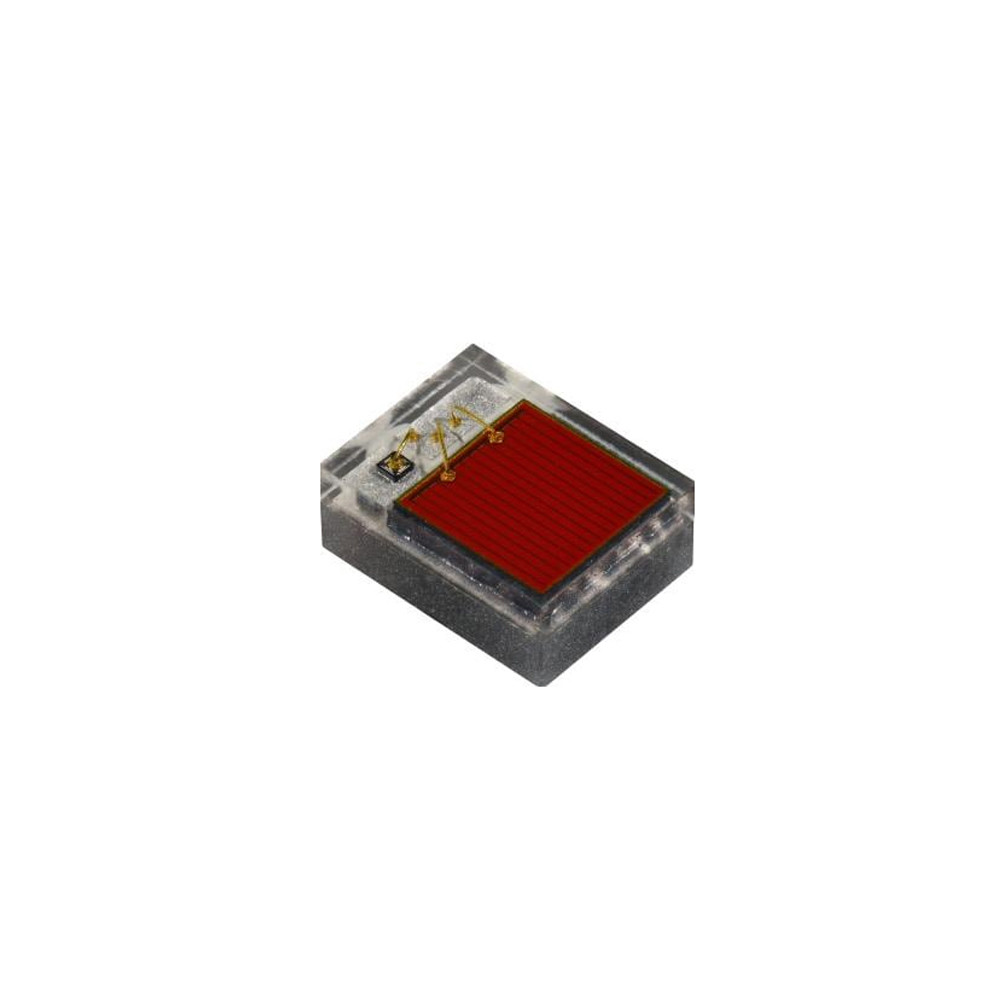

Optoelectronics Components XEGARD-H0-0000-000-000000R5001 NA LED - High Power


Product Description:

XLamp® Element G (XE-G) LEDs are breakthrough solutions for color-mixing lighting applications that require high levels of light output and full control over the spectral content. XLamp XE-G LEDs are available in 17 different colors plus a complete portfolio of white options, giving lighting manufacturers unprecedented flexibility to change and optimize their product's light output properties. The new XE-G 2.05 x 1.6 mm footprint package includes an industry-leading combination of features for LEDs in this size class, including a large isolated thermal pad, ESD protection and minimal spacing between the LED chip and the edge of the package. The XE-G platform is consistent across all colors in key LED design parameters, including package size, PCB footprint, anode/ cathode orientation, optical source size, optical source location and ESD protection. This consistency makes it easy to reuse core design elements, such as PCBs and optics, across a wide range of designs. XLamp Element G (XE-G) LEDs are optimized for directional lighting applications that benefit from multi-color LED designs, including indoor directional, architectural, entertainment and aftermarket automotive.



• Available in 70, 80, & 90 CRI white, violet, royal blue, blue, PC blue, cyan, PC cyan, green, PC mint, PC lime, PC yellow, amber, PC amber, red‑orange, PC red‑orange, red, PC red, and photo red • Maximum drive current: 3 A • Reflow solderable - JEDEC J-STD‑020C compatible • Unlimited floor life at ≤ 30 °C/85% RH • RoHS and REACH compliant • UL® recognized component (E349212)


Parameter Table:

Product Attribute Attribute Value
Manufacturer: Cree LED
Product Category: High Power LEDs - Single Color
RoHS: Yes
Product: Red LEDs
Mounting Style: SMD/SMT
Package / Case: 2016
Wavelength/Color Temperature: 625 nm
Illumination Color: Red
Luminous Flux/Radiant Flux: 139 lm
Lens Color: Colorless
Lens Dimensions: 2.05 mm x 1.6 mm
Lens Shape: Rectangular
Lens Transparency: Clear
