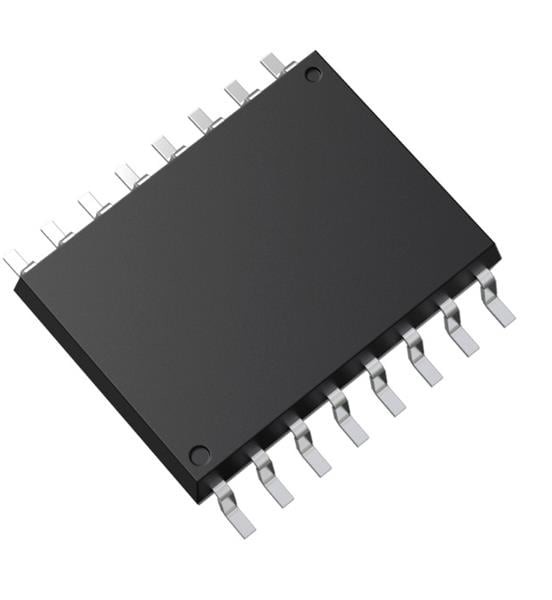

IC Integrated Circuits TLP5222(D4-TP,E SO-16 Optocouplers

Product Details:
Place of Origin:	USA

Contact Now

Specifications Product Description Request A Quote

Specifications

Mfr. #: TLP5222(D4-TP,E

Mfr.: Toshiba

Description: Logic Output Optocouplers Gate Drive Coupler

Factory Lead-Time: 36 Weeks

Product Description

IC Integrated Circuits TLP5222(D4-TP,E SO-16 Optocouplers

Specifications

Product Attribute	Attribute Value
Manufacturer:	Toshiba
Product Category:	Logic Output Optocouplers
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	SO-16
Output Type:	Photo IC
Number of Channels:	1 Channel
Isolation Voltage:	5000 Vrms
Maximum Continuous Output Current:	2.5 A
If - Forward Current:	25 mA
Vf - Forward Voltage:	1.67 V
Vr - Reverse Voltage:	5 V
Pd - Power Dissipation:	60 mW
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Toshiba
Fall Time:	50 ns
Product Type:	Logic Output Optocouplers
Propagation Delay - Max:	250 ns
Rise Time:	37 ns
Factory Pack Quantity:	1500
Subcategory:	Optocouplers
Type:	Infrared LED & Photo IC
