Product Details:
|
|
| Place of Origin: | USA |
|---|---|
| Brand Name: | TI |
| Model Number: | TLV75525PDQNR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50PCS |
| Price: | RFQ |
| Packaging Details: | ESD/Vacuum/Foam/Cartons |
| Delivery Time: | Immediately |
| Payment Terms: | T/T, Western Union, escrow, Paypal, Visa, MoneyGram |
| Supply Ability: | RFQ |

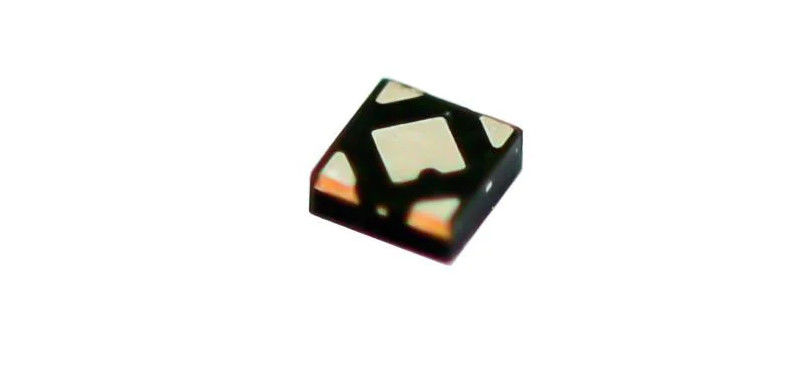

IC Integrated Circuits TLV75525PDQNR X2SON-4 LDO Voltage Regulators
Product Description:
The TLV755P is an ultra-small, low quiescent current, low-dropout regulator (LDO) that sources 500 mA with good line and load transient performance. The TLV755P is optimized for a wide variety of applications by supporting an input voltage range from 1.45 V to 5.5 V. To minimize cost and solution size, the device is offered in fixed output voltages ranging from 0.6 V to 5 V to support the lower core voltages of modern microcontrollers (MCUs). Additionally, the TLV755P has a low IQ with enable functionality to minimize standby power. This device features an internal soft-start to lower inrush current, thus providing a controlled voltage to the load and minimizing the input voltage drop during start up. When shutdown, the device actively pulls down the output to quickly discharge the outputs and ensure a known start-up state. The TLV755P is stable with small ceramic output capacitors allowing for a small overall solution size. A precision band-gap and error amplifier provides a typical accuracy of 1%. All device versions have integrated thermal shutdown, current limit, and undervoltage lockout (UVLO). The TLV755P has an internal foldback current limit that helps reduce the thermal dissipation during short-circuit events.
Application:
• Set-Top Boxes, TV, and Gaming Consoles • Portable and Battery-Powered Equipment • Desktop, Notebooks, and Ultrabooks • Tablets and Remote Controls • White Goods and Appliances • Grid Infrastructure and Protection Relays • Camera Modules and Image Sensors
Parameter Table:
| Product Attribute | Attribute Value |
| Manufacturer: | Texas Instruments |
| Product Category: | LDO Voltage Regulators |
| RoHS: | YES |
| Mounting Style: | SMD/SMT |
| Package / Case: | X2SON-4 |
| Input Voltage, Min: | 1.45 V |
| Input Voltage, Max: | 5.5 V |
| Series: | TLV755P |
| Brand: | Texas Instruments |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Low Quiescent Current, Ultra Small |
FAQ:
No MOQ needed, and if you buy more, will enjoy better prices.
You can ask our staff for apply free samples.
We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.
We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.
Quality Warranty Period:12 Months.
All products were tested before shipment, and the quality problems were negligible.
Yes, We provide one-stop purchase service, Please send us your Bom List
