Product Description:

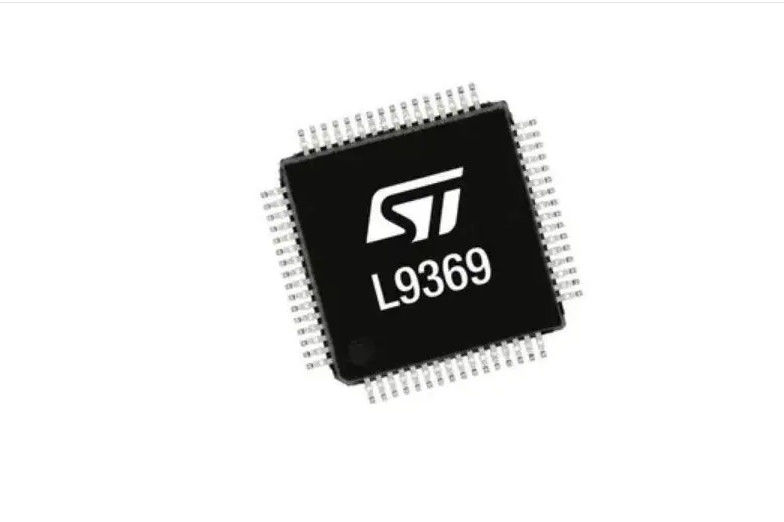

The L9369 targets the specific application of electric parking braking, suitable for system configuration in cable-puller or Motor Gear Unit (MGU). The cores are two H-bridge driver stages to drive 8 external FETs for the rear wheels brakes actuators. The stages are fully driven and configurable via SPI, also in PWM control mode and protected against overcurrent, with drainsource and gate-source voltages monitoring. A synchronized motor voltages and currents acquisition, is performed via full differential amplifiers with programmable and precise gain and low offset and 10 ADC sigma-delta modulators. Two configurable HS/LS stages are present with programmable output voltage to drive LED arrays, with feedforward regulation. 2 Motor Speed Sensor interfaces (MSS) are available to acquire position feedback from brake actuators (shared with Lamp driver stage and GPIO). The set of the interfaces is completed by 4 GPIO (General Purpose I/O) pins and a button interface allows to manage specific customer requirements from Electronic parking braking (EPB) button console both in Normal and Sleep Mode.

Application:

 Functional safety concept for ISO26262 compliance  4 High-side and Low-side gate pre-drivers for 8 external power NFETs  Overcurrent protection with programmable thresholds  Programmable and NFET independent thresholds for VDS monitoring  10 integrated Fully differential amplifiers with low offset, very precise gain, and self-test  10 separate ADC channels for digital processing of motor current and voltage measurement  32-bits - 10 MHz SPI with CRC for internal setting, self-test and diagnostics  Full drive of external power NFETs down to 5.5 V battery input voltage  Monitoring on Main power supply and continuous BIST for internal regulators  Double Bandgap reference  4 General Purpose I/O stages (GPIO)  Button Interface (9 configurable I/O pins) for monitoring and diagnostics in Normal and Sleep Mode.

Parameter Table:

FAQ:

• Whats your MOQ?

No MOQ needed, and if you buy more, will enjoy better prices.

• Can i get a free sample?

You can ask our staff for apply free samples.

• What payment methods do you support?

We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

• What about the shipment methods?

We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

• How will you Guaranteed quality?

Quality Warranty Period:12 Months.

• Are the products tested before shipment?

All products were tested before shipment, and the quality problems were negligible.

• Do you provide BOM services?

Yes, We provide one-stop purchase service, Please send us your Bom List
